Introducing

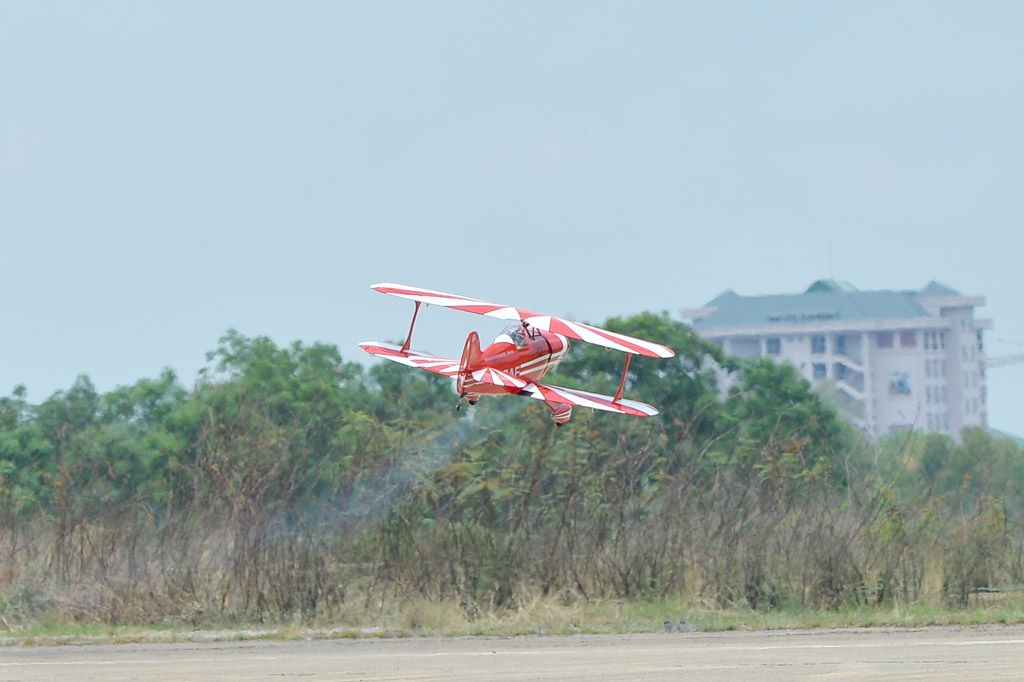

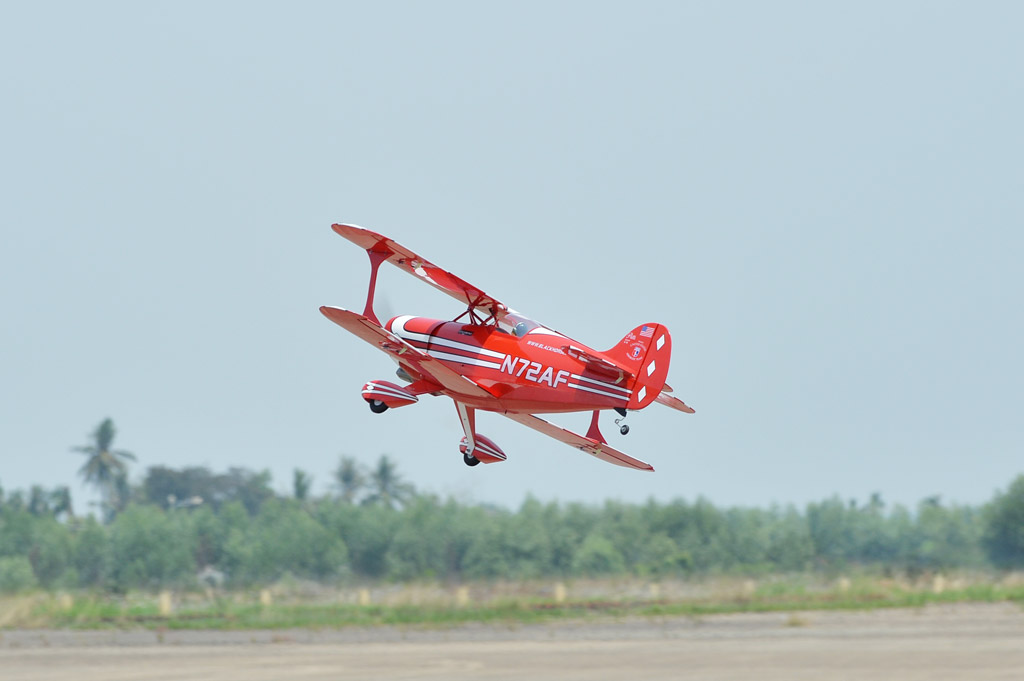

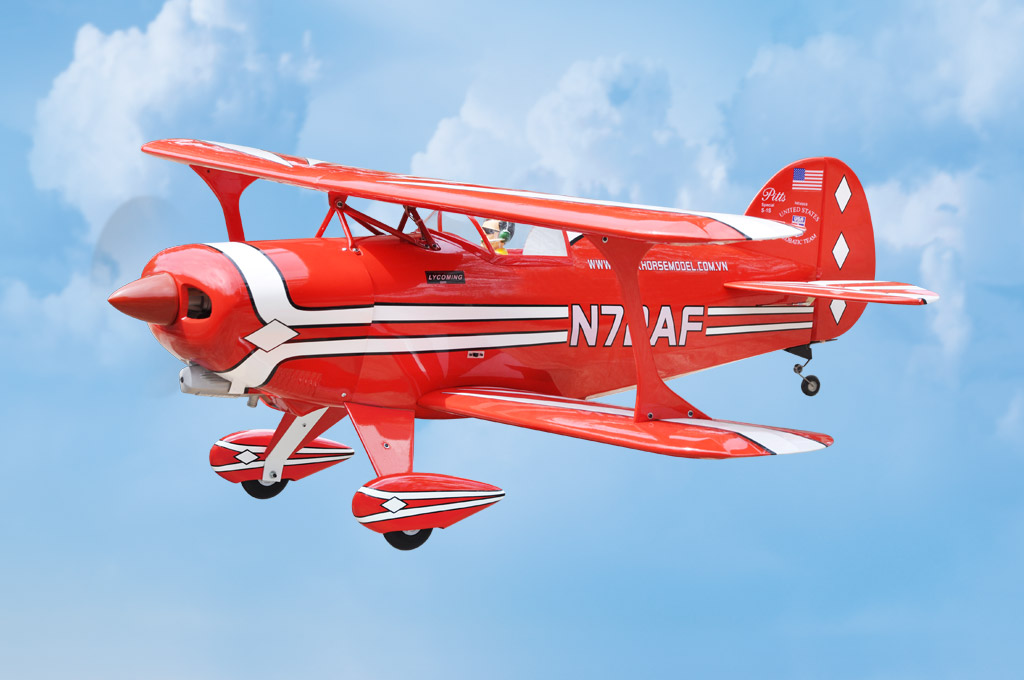

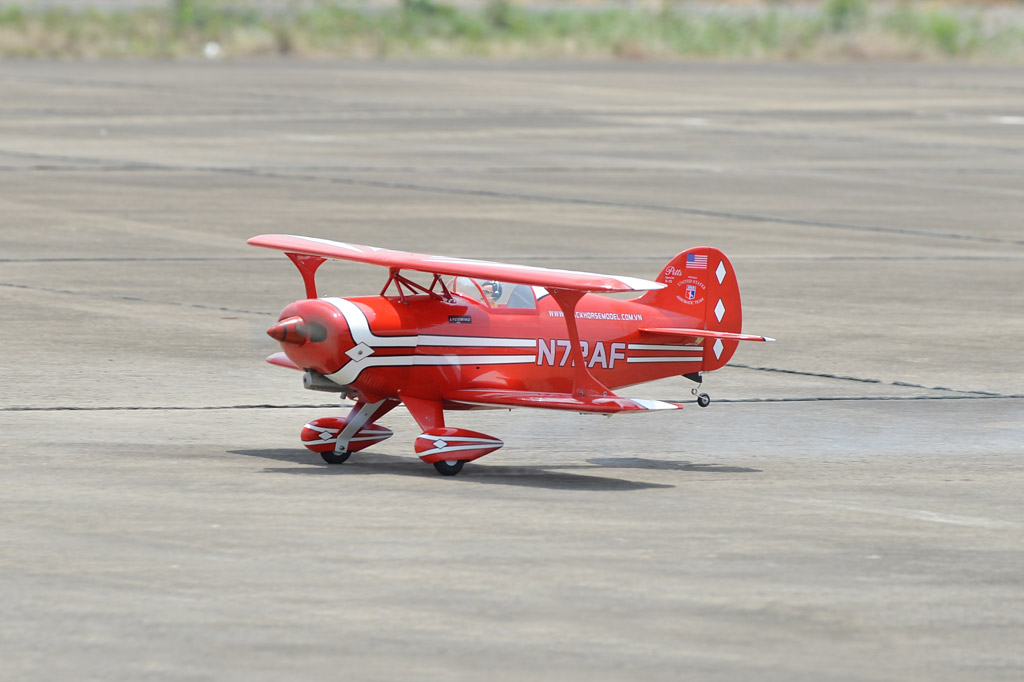

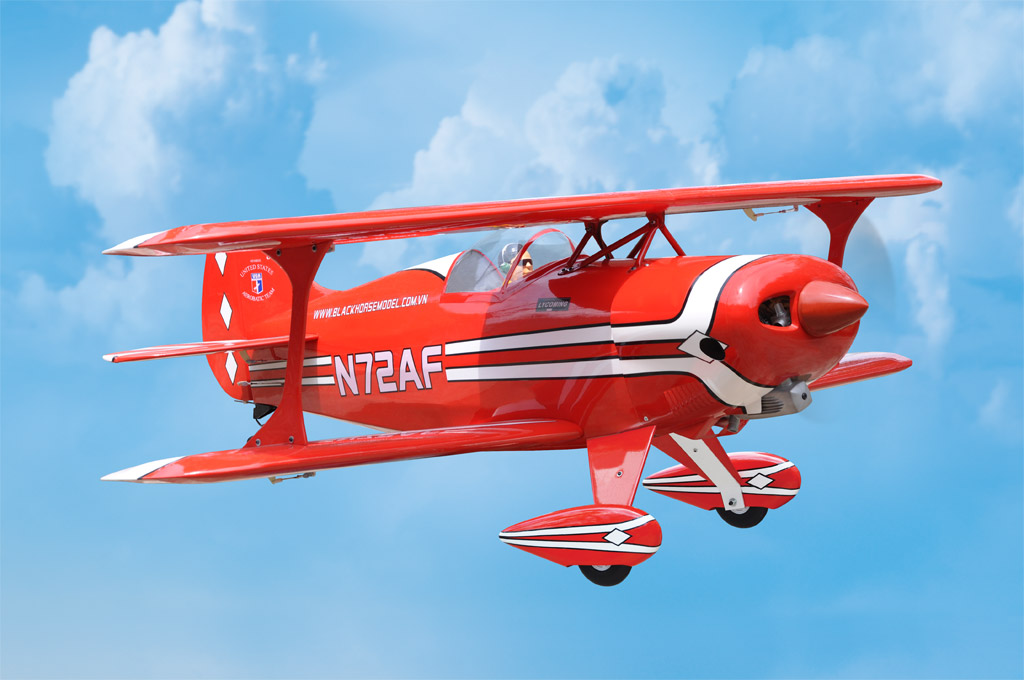

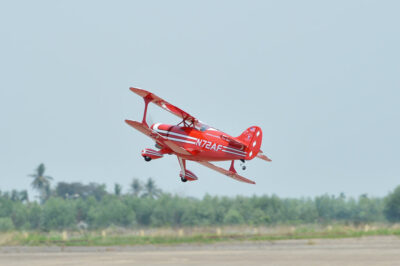

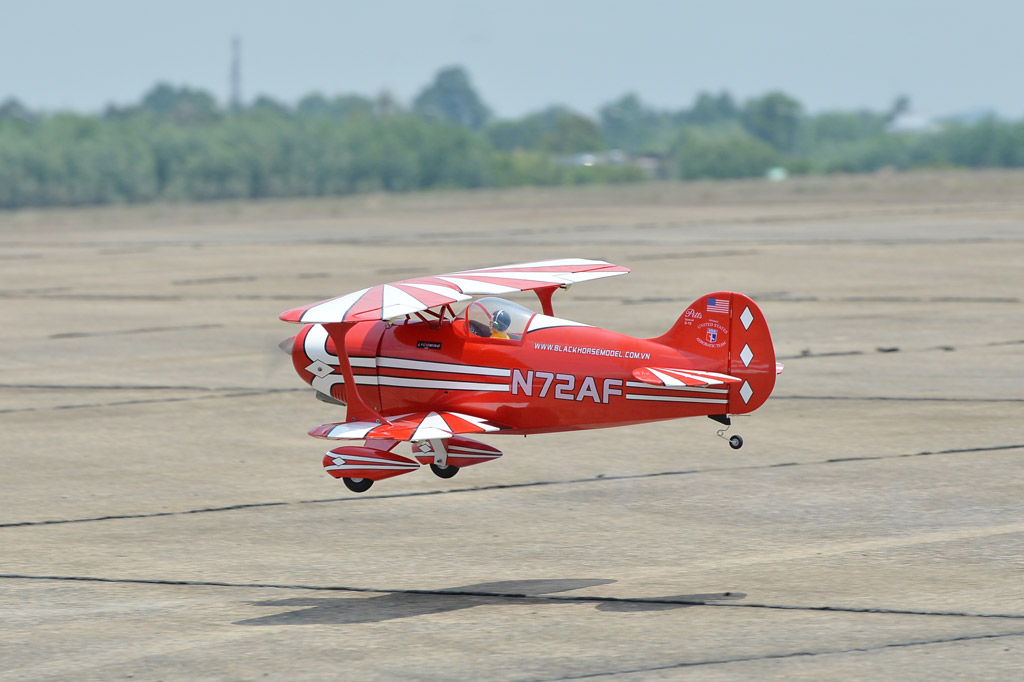

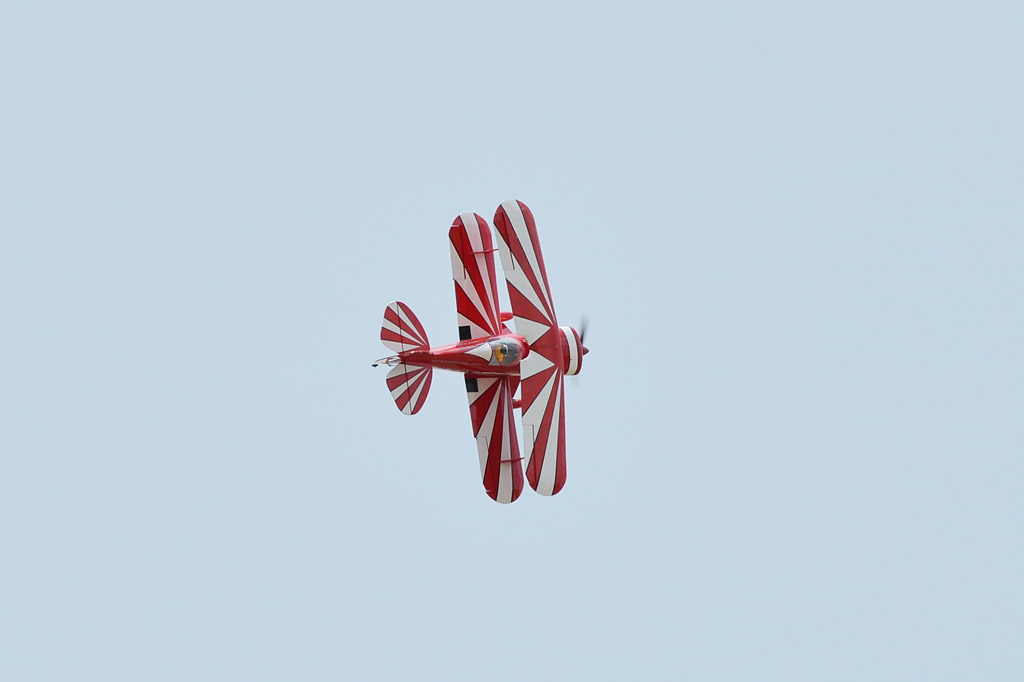

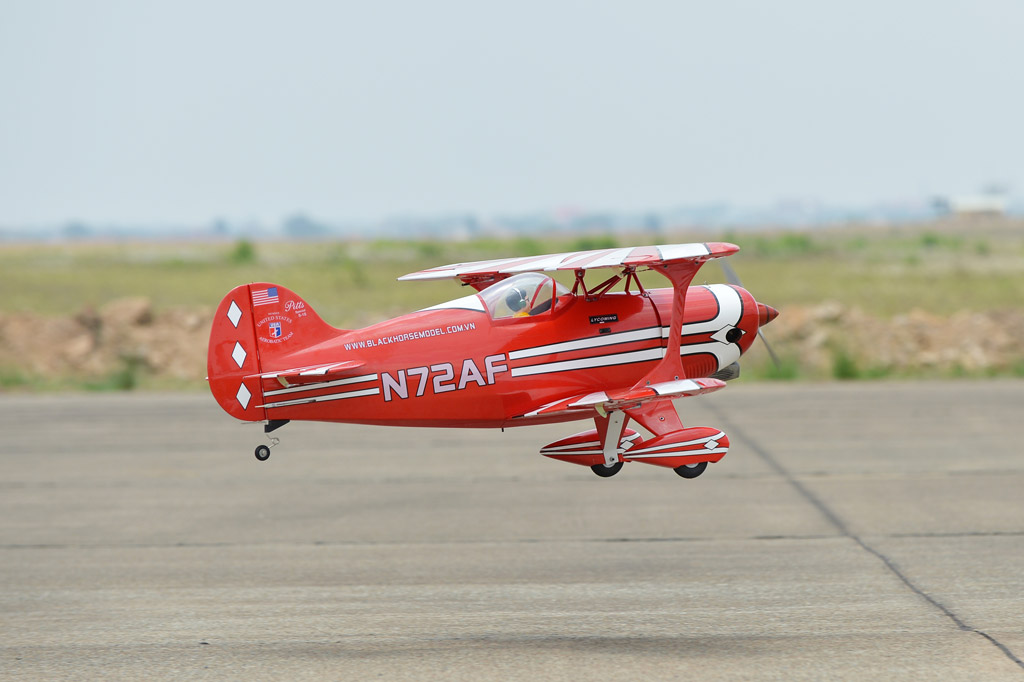

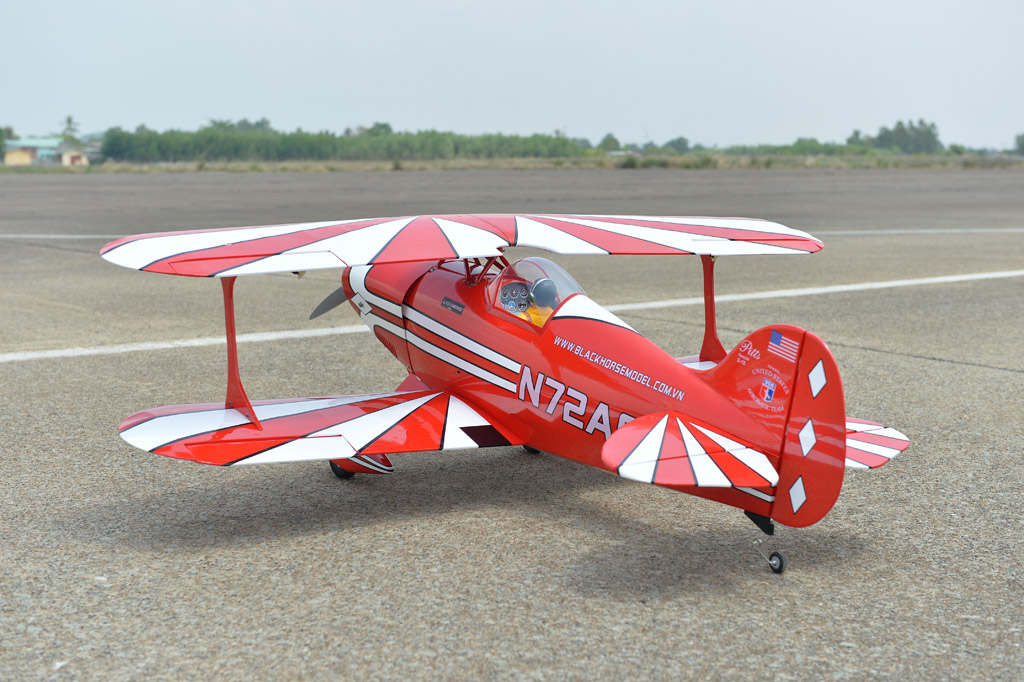

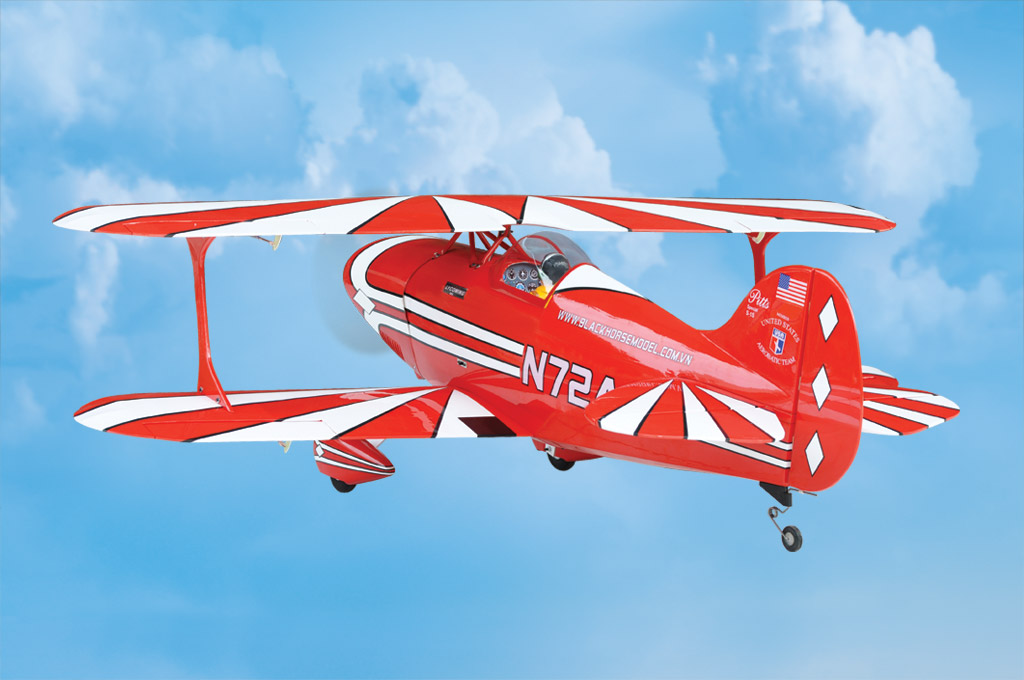

PITTS 1500mm (59.06″) size 20cc gas ARF
SPECIFICATION
– Wingspan: 1,500mm 59.06 in).
– Length: 1,330mm (52.36 in).
– Weight: 4700gr
– Wing area: 74dm2.
– Wing loading: 64g/dm2.
– Wing type: Naca Airfoil.
– Servo mount: 42mm x 21mm.
– Spinner: 70mm (included).
– Gear type: Aluminium Hi-grade for main gear (included).
– Tail gear type: Spring wire for tail gear (included).
Parts listing required (not included).
– Radio: 06 channels minimum.
– Servo: 07 standard servos.
– Engine: 120 – 2 stroke; 20cc Gas.
– Motor: Brushless outrunner 1800-2300W, 450KV.
– Propeller: Suit with your engine.
Recommended motor and battery set up (not included):
– Motor: RIMFIRE.120.
– Lipo cell: 6 cells 4,000-5,000mAh.
– Receiver battery: 6V-7.4V 1200-2200mAh Lipo.
– ESC: 80A.
Feature
– Designed for compatibility with both GP and EP flight
– Detailed instrument panels
– True-to-scale outline
– Top quality balsa/light plywood construction
– Scale wire rigging
– All hardware include
Colour chart:
– White: (#21010)
– Ferrari Red: (#21023)
– Black: (#21071)
Packing
BOX DIMENSION
– 1110mm X 435mm X 440mm (L x W x H
