Introducing

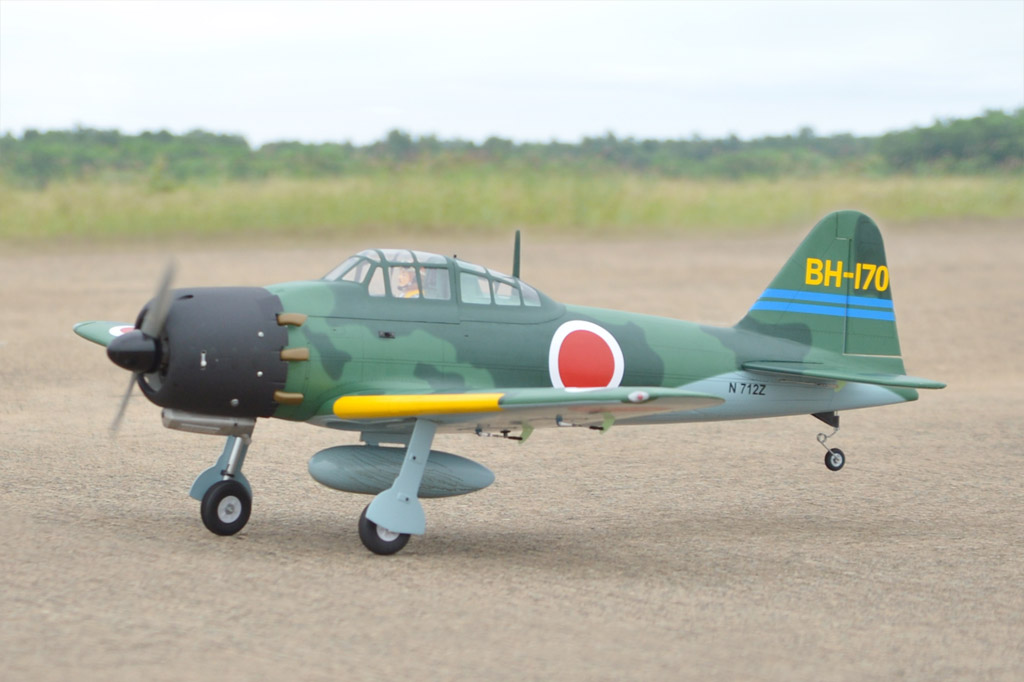

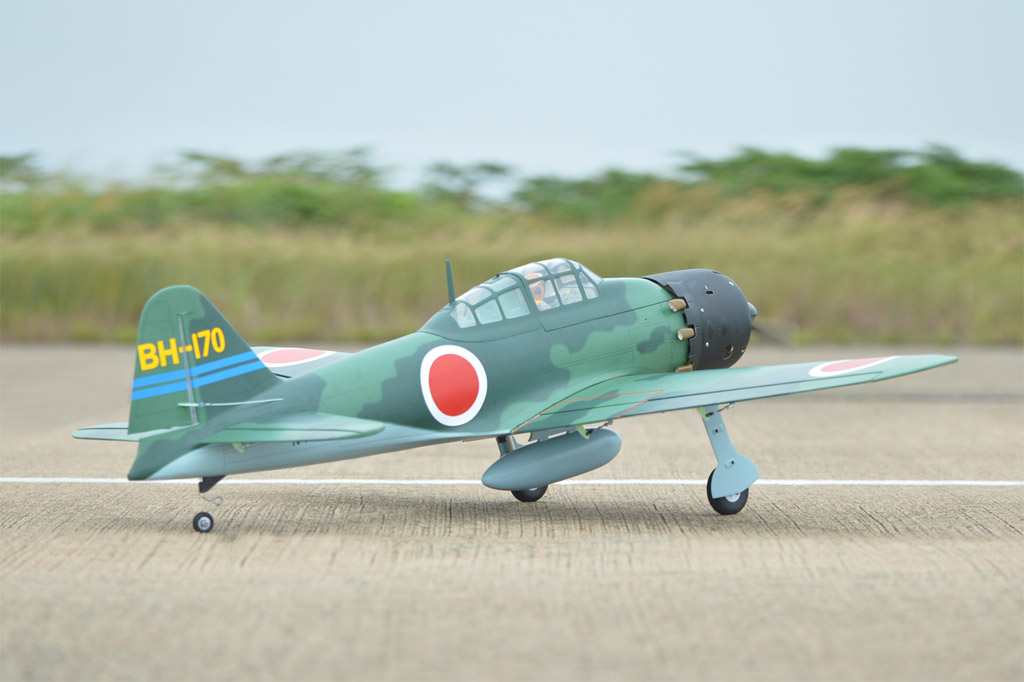

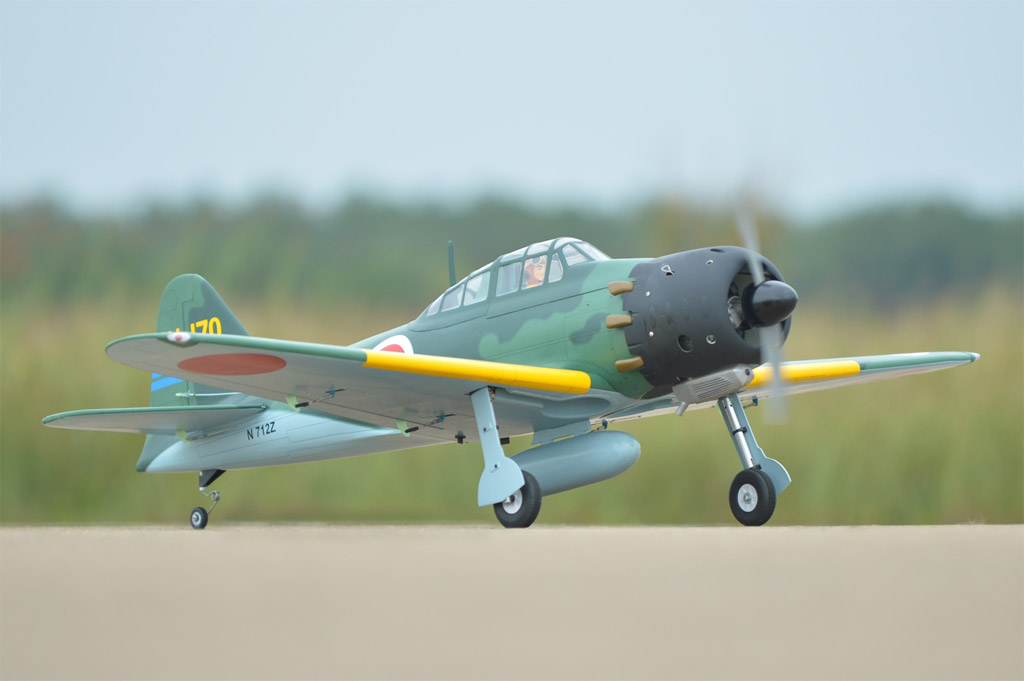

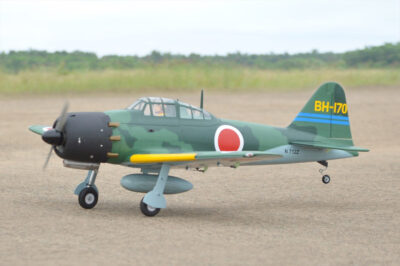

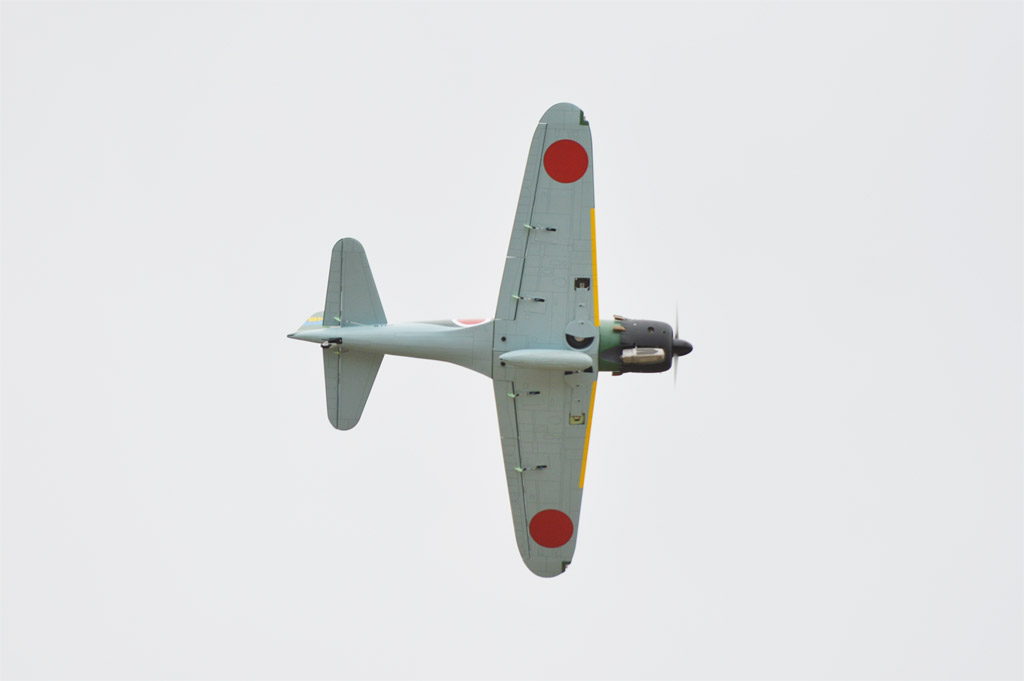

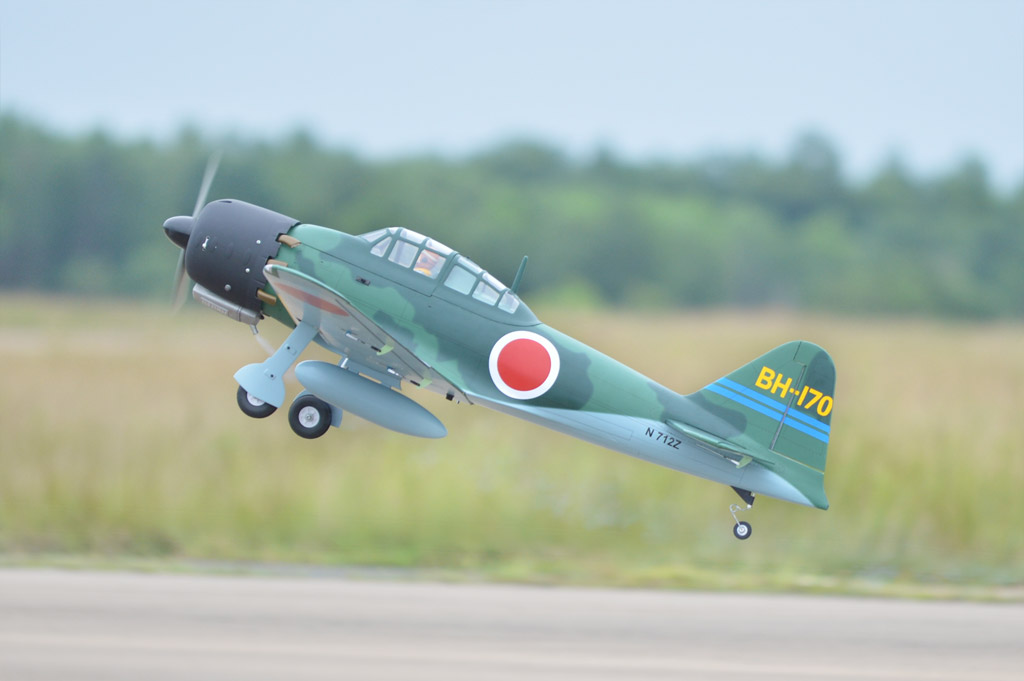

A6M ZERO 1720 mm (67.72″) 15cc ARF W/Electric retract
SPECIFICATION:
– Wingspan: 1,720 mm (67.72 in).
– Length: 1,375 mm (54.13 in).
– Weight: 4400-4600gr
– Wing area: 46.5 dm2.
– Wing loading: 94.62 g/dm2.
– Servo mount: 42mm x 21mm.
– Wing type: Naca Airfoil.
– Spinner: 70mm.
– Gear type: Electric retract gear W/Oleo struts for main gear (included).
– Tail gear type: Spring wire for tail gear (included).
Parts listing required (not included):
– Radio: 06 channels minimum.
– Servo: 07 standard servos.
– Engine: 75 – 95 2 strokes; 15 cc gas.
– Motor: Brushless outrunner 1200-2200W, 650KV.
– Propeller: Suit with your engine.
Recommended Motor and Battery set up (not included):
– Motor: RIMFIRE.60.
– Lipo cell: 6 cells 4,000-5,000mAh.
– Receiver battery: 6V/ 800-1200 mAh.
– ESC: 80A.
Colour chart
Not update…
Packing
BOX DIMENSION
– 1270mm X 460mm X 380mm (L x W x H)
