Introducing

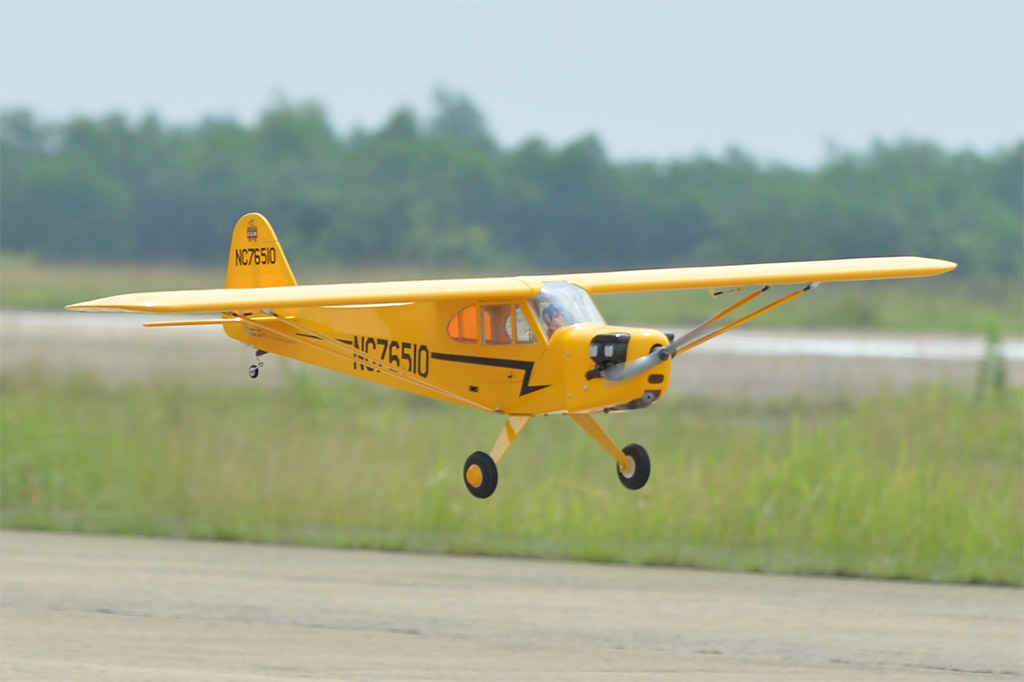

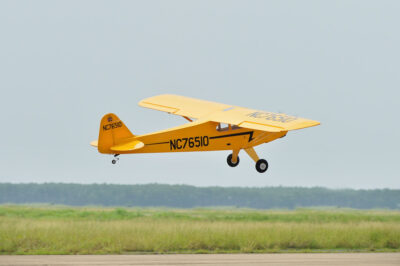

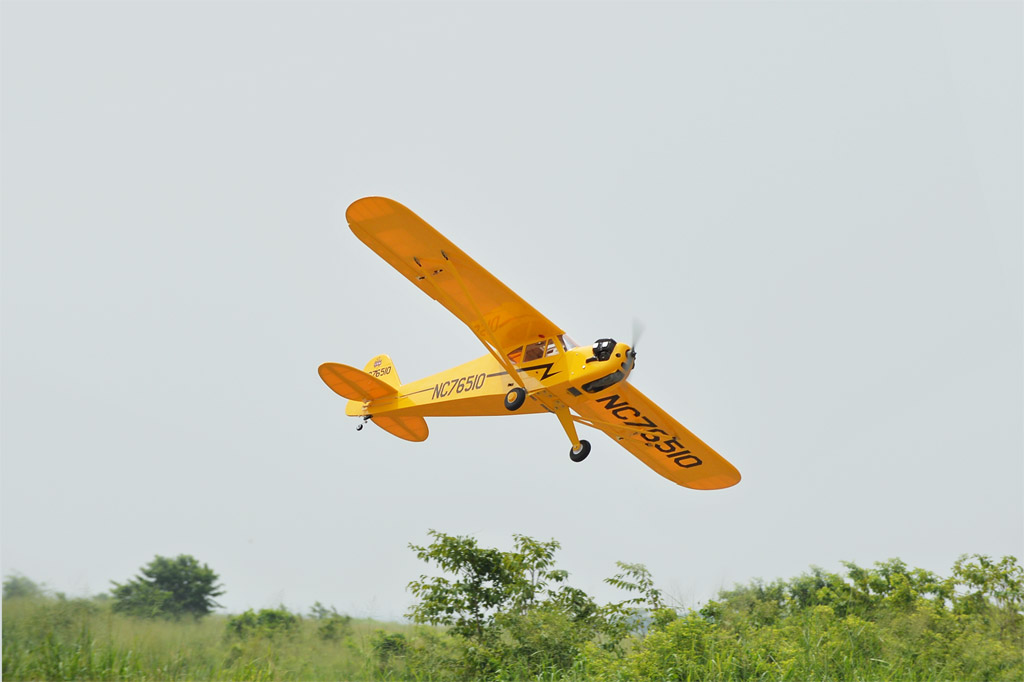

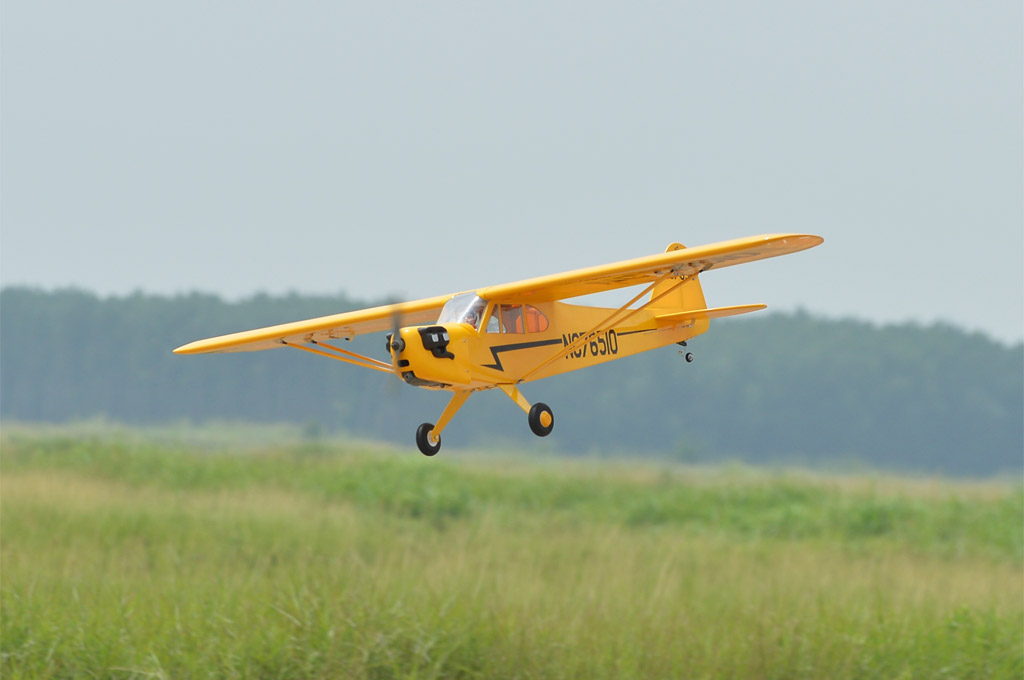

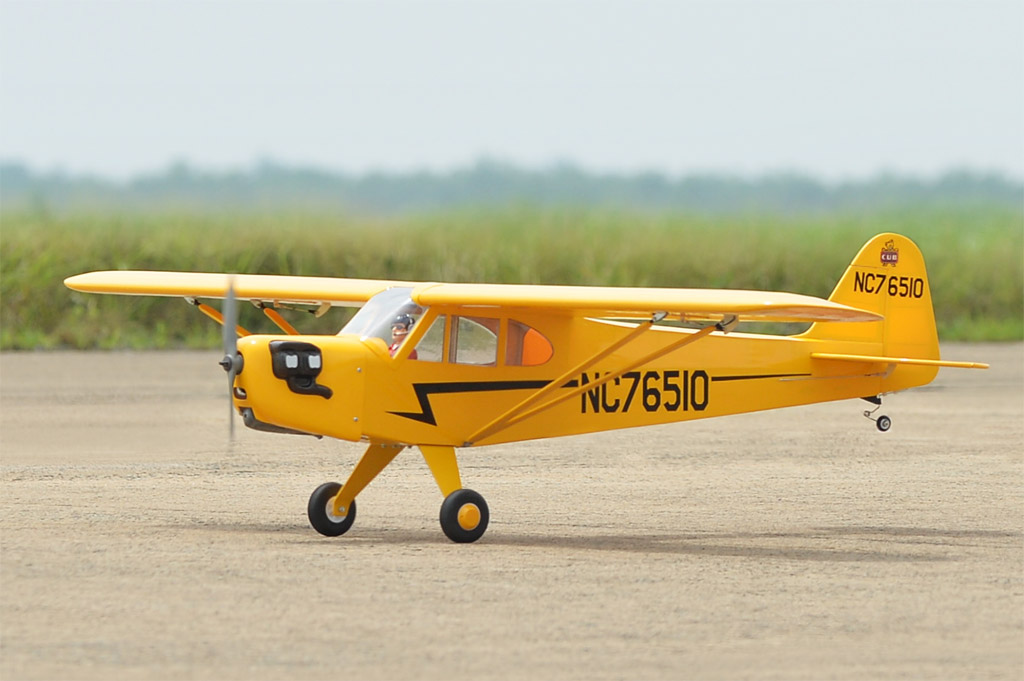

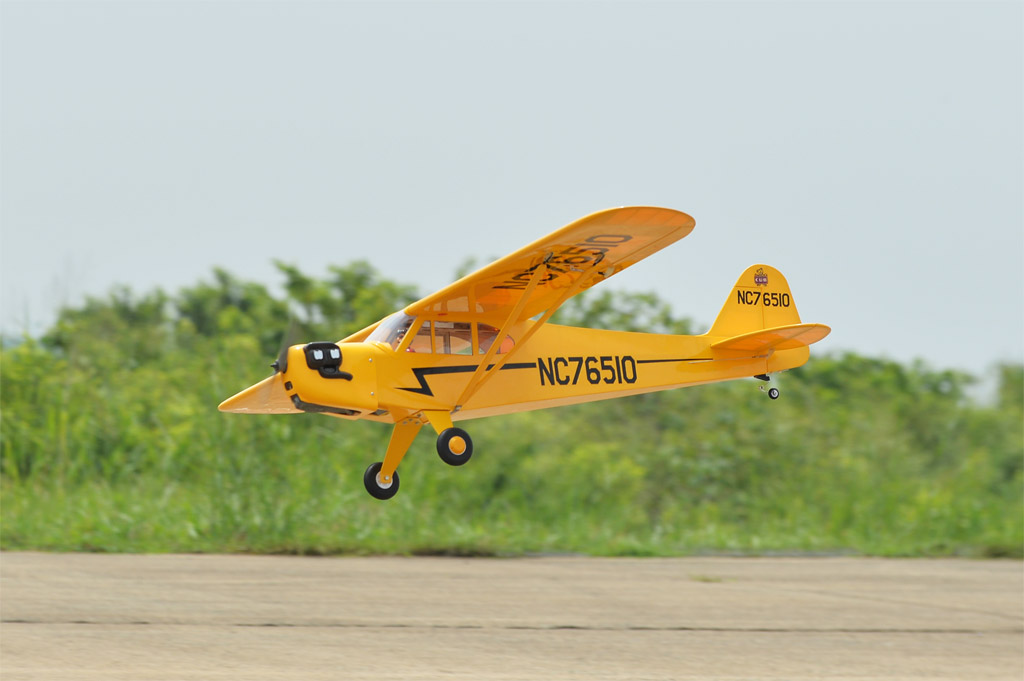

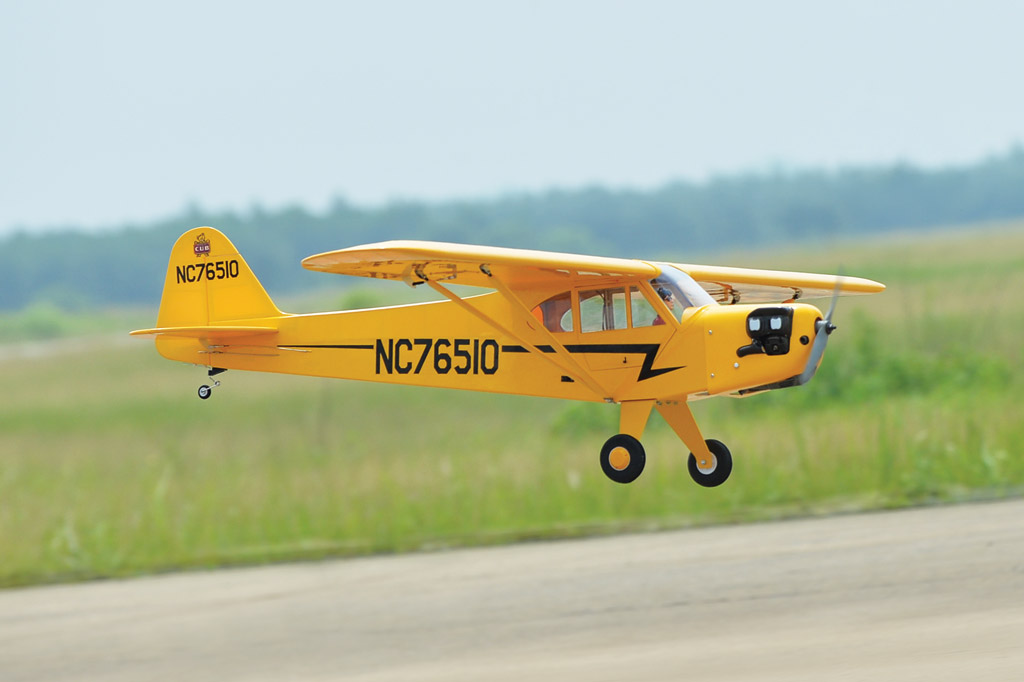

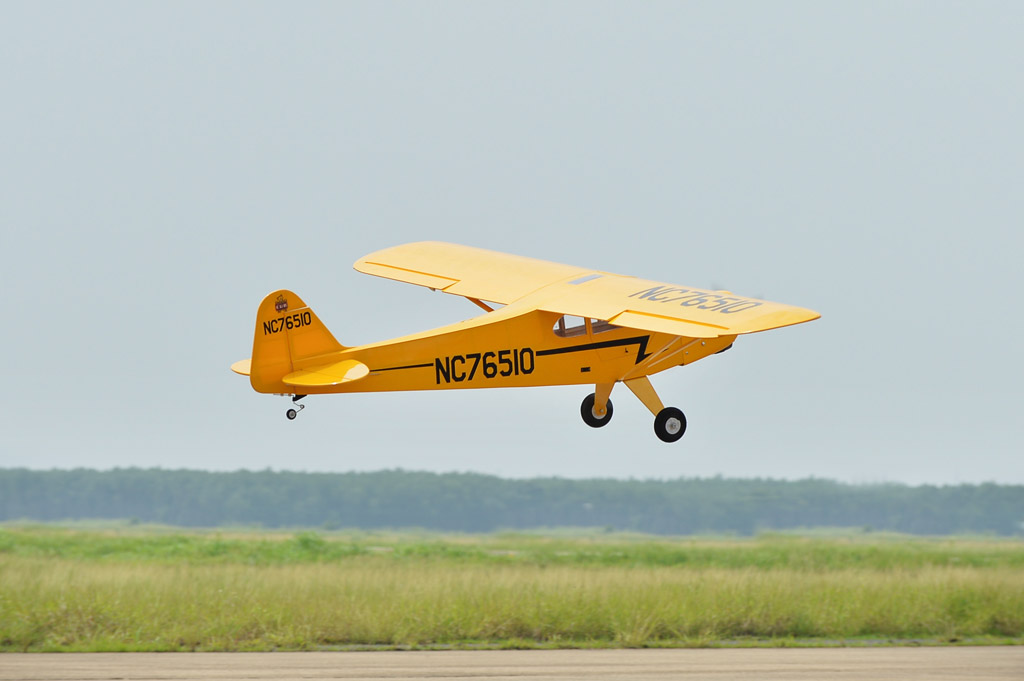

Piper J-3 Cub 1,950 mm (76.77″) size 46-55 ARF
PRODUCT DATA:
– Wingspan: 1,950 mm 76.77 in.
– Length: 1,297 mm 51.06 in.
– Weight: 3200-3500gr
– Wing area: 53.8dm2.
– Wing loading: 59.5g/dm2.
– Wing type: SA – 35B.
– Spinner size: 58mm
– Servo mount: 21mm x 42 mm
– Gear type: Aluminium Hi-grade for main gear and spring wire for tail gear (included).
Parts listing required (not included):
– Radio : 04 channels.
– Servo : 05 – 06 servos.
– Engine: 46 – 55 2 stroke.
– Motor: Brushless outrunner 1000-1800W, 800KV.
– Propeller: Suit with your engine.
Recommended Motor and Battery set up (not included):
– Motor: RIMFIRE.46.
– Lipo cell: 6 cells 4,000-5,000mAh.
– Receiver battery: 4.8- 6V/ 800 – 1200mAh NiMH.
– ESC: 60A.
Feature
Designed for compatibility with both GP and EP fligh
– Removable top hatch for easy access to the interior of the plane
– 2-stroke, 4-stroke glow or electric option
– Strong Light Weight Construction
– High-quality hardware package included
Colour chart:
– Cub Yellow: (#21030)
Packing
BOX DIMENSION
– 1145mm X 355mm X 270mm (L x W x H)
