Introducing

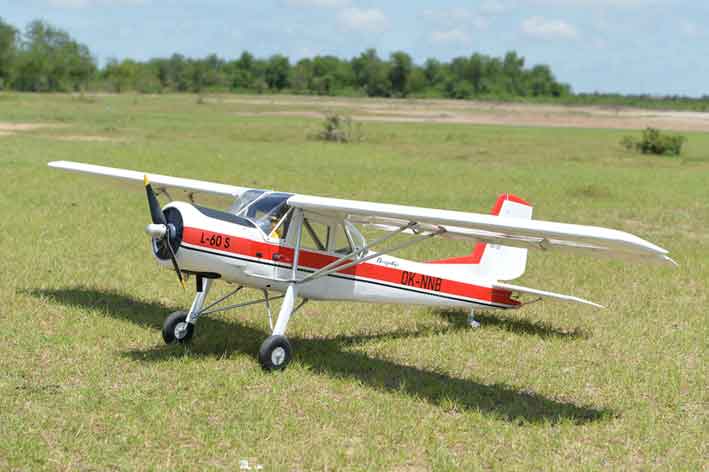

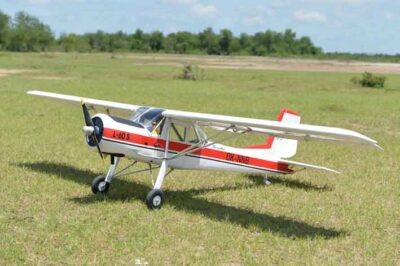

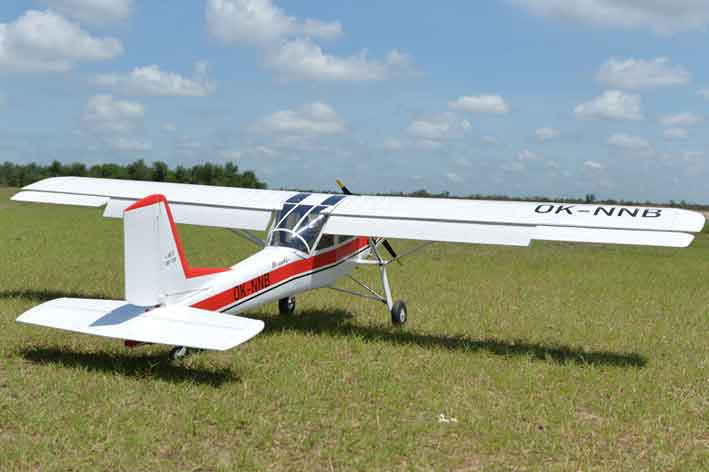

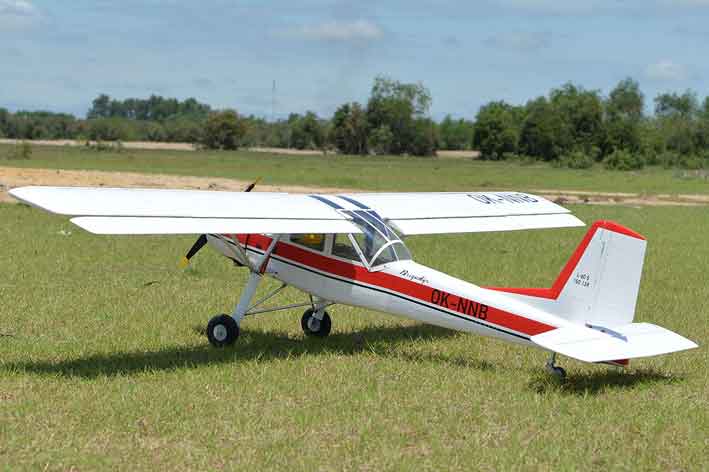

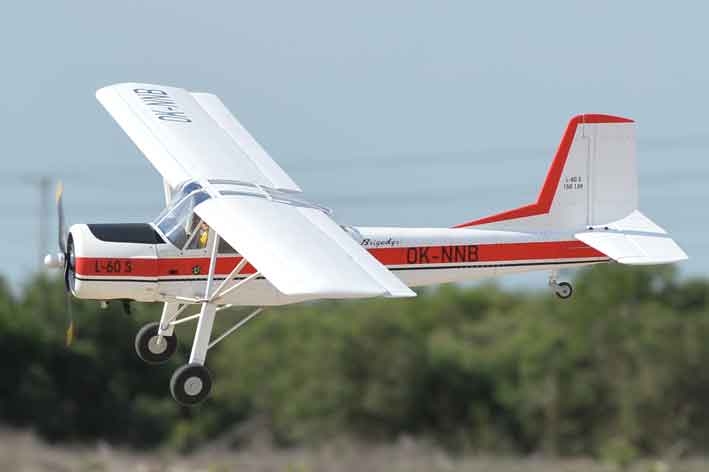

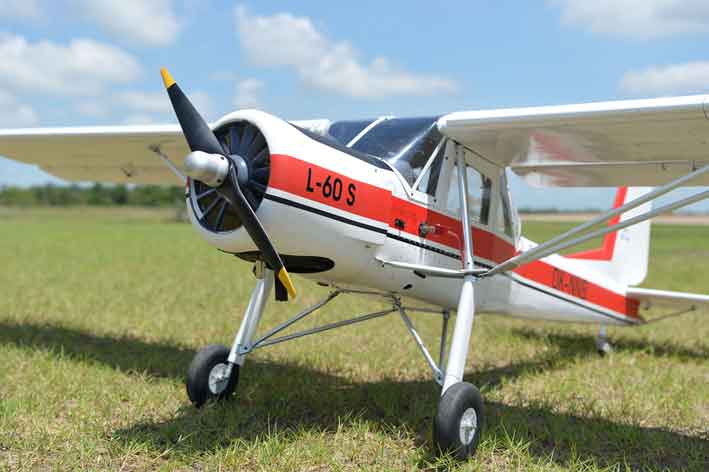

L-60S Brigadýr 2668mm (105.04″) ARF 30-35cc ARF
PRODUCT DATA:
– Wingspan: 2668mm (105.04 in)
– Length: 1672mm (65.83 in)
– Flying weight: 8000 gr
– Wing area: 90.58 dm2
– Wing loading: 88.31g/dm2
– Gear type: Oleo struts for main gear & Oleo struts for tail gear (included).
– Spinner size: Aluminium 44mm (included).
– Radio: 6 channel minimum (not included)
– Servo: standard hitorque servo: 2 aileron; 2 flap; 1 elevator; 1 rudder; 1 throttle (not included)
– Propeller: suit with your engine
– Engine: 30-35cc gas engine (not included)
– Motor: brushless outrunner 2500 W, 250 KV (not included)
– Experience level: Intermediate
– Plane type: Scale Civilian
RECOMMENDED MOTOR AND BATTERY SET UP
– Motor: RIMFIRE 1.60 (not included)
– Lipo cell: 12 cells (not included)
– Esc: 80A -100A(not included)
Feature
– Designed for compatibility with both GP and EP flight
– Bolt-on two-piece wing for easy transport and setup at the field
– Equipped with a patented Smart Lock system, allowing wings and stabilizers to be mounted with speed, accuracy, and reliability.
– Extremely lightweight laser-cut all-wood construction
– Durable factory-painted fiberglass cowl
– All hardware included
Colour chart:
Not update…
Packing:
BOX DIMENSION
– 1520mm X 480mm X 400mm (L x W x H)
