Introducing

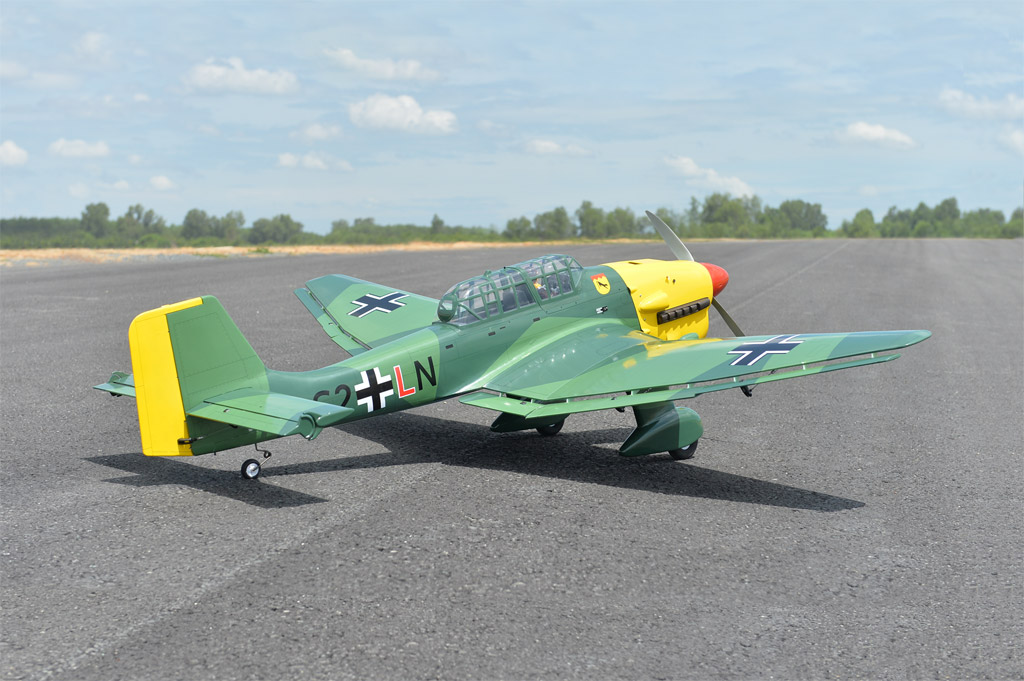

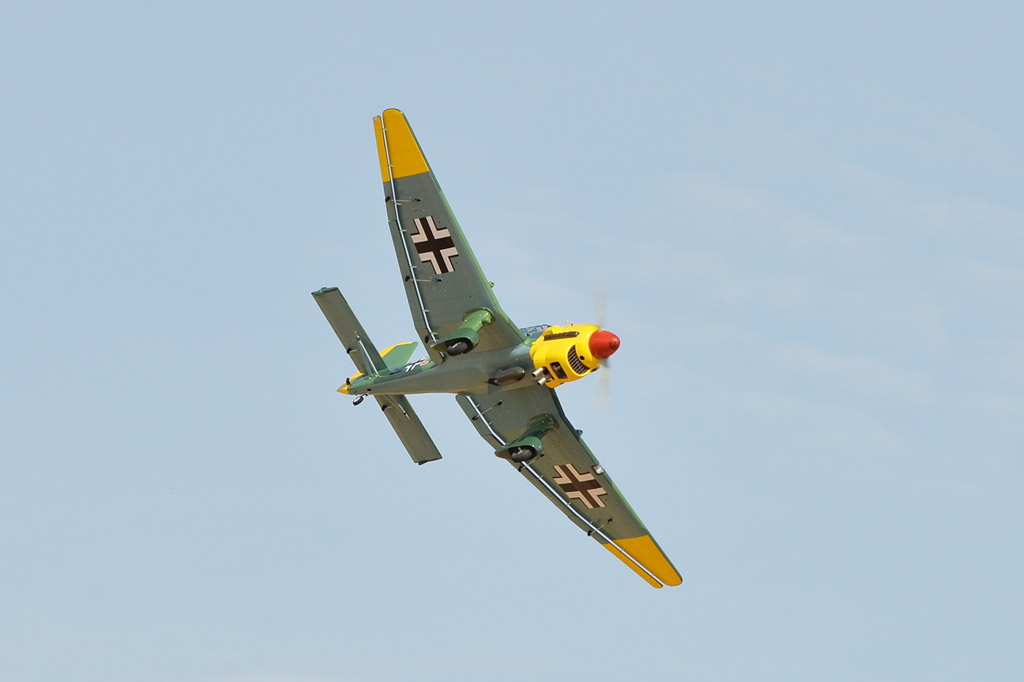

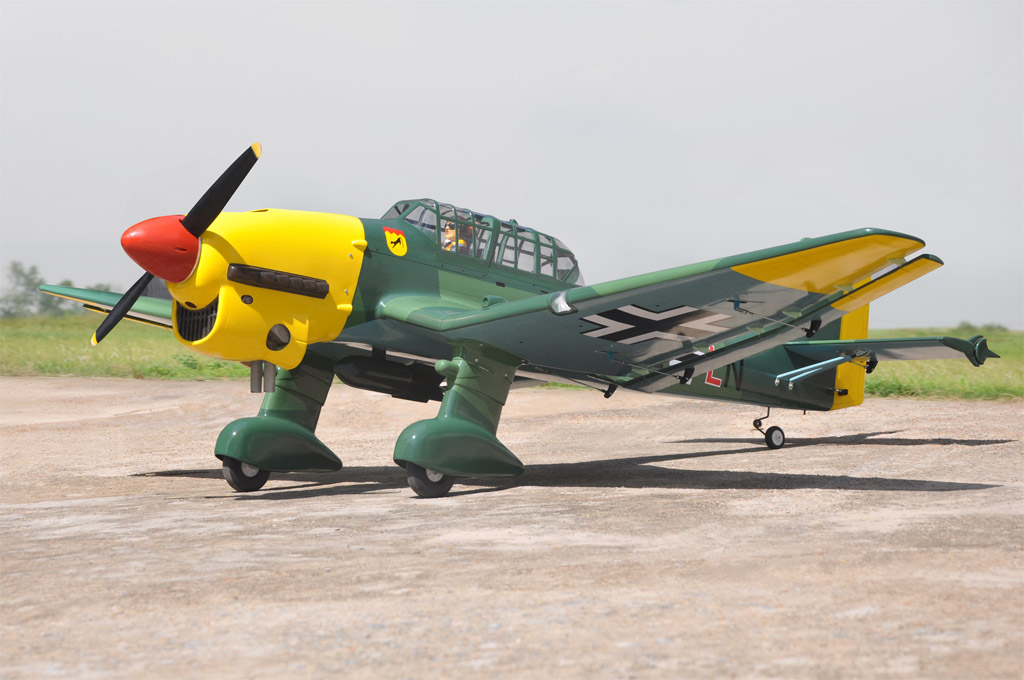

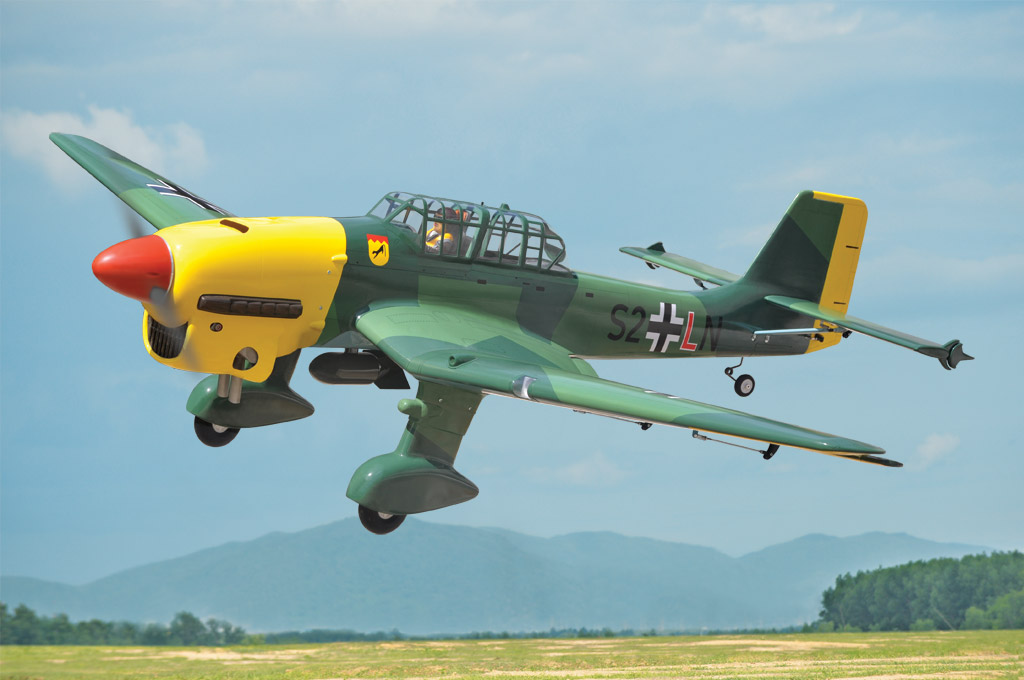

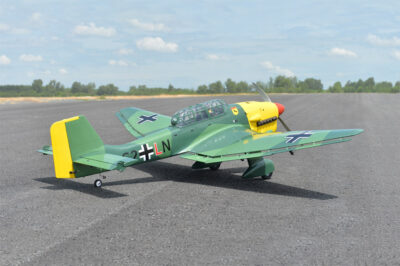

JUNKERS JU87- B2 STUKA 2300mm (90.55″) 60cc ARF
SPECIFICATION:
– Wingspan: 2,300mm (90.55in).
– Length: 1,837mm (72.32in.)
– Weight: 8600-8800gr
– Wing area: 90.2 dm2.
– Wing loading: 95.34 g/dm2.
– Wing type: Naca Airfoil.
– Servo mount: (42x 21)mm.
– Spinner: 115 mm (included).
– Gear type: Oleo struts for main gear (included).
– Tail gear type: Oleo struts for tail gear (included).
Parts listing required (not included):
– Radio: 06 channels minimum.
– Servo: 10 Standard high torque servos.
– Engine: 50 – 60cc Gas.
– Motor: Brushless outrunner 5000 – 6500W, 230KV.
– Propeller: Suit with your engine.
Recommended receiver battery (not included):
– Motor: RIMFIRE. 50 cc.
– Lipo cell: 12 cells 5500 – 6000mAh.
– Receiver battery: 2 cells 7.4V 2200mAh – 3200mAh.
– ESC: 120A.
Feature
– Designed for compatibility with both GP and EP flight
– Top quality balsa/light plywood construction
– Electric Retract With CNC Suspension Metal Struts included

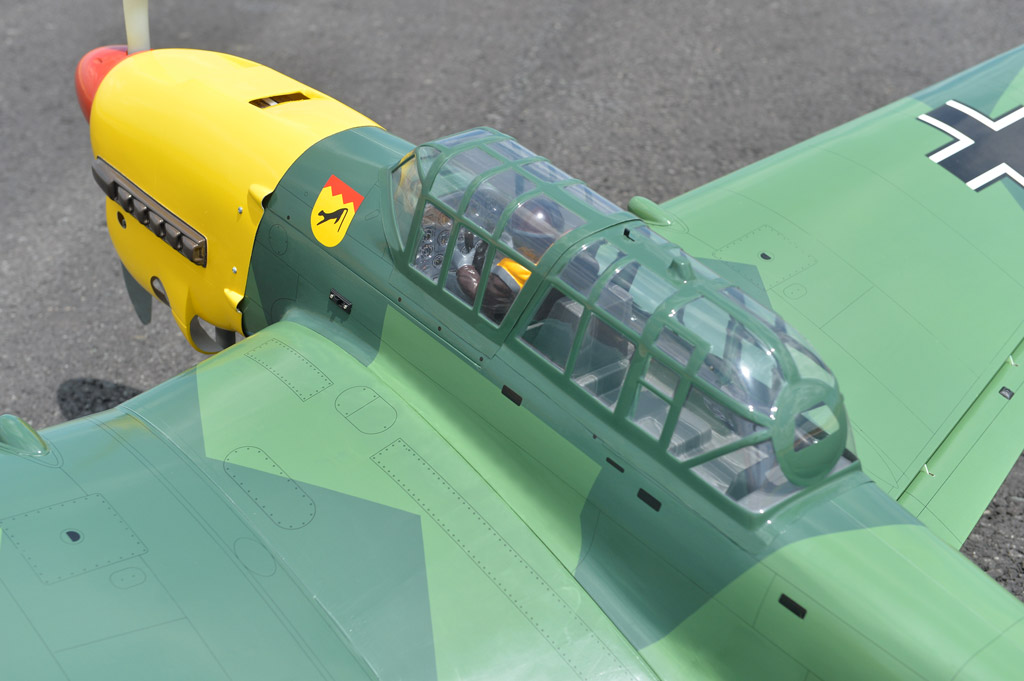

– Full-depth cockpit and instrument panel and pilot included
– Bolt-on two-piece wing for easy transport and setup at the field
– Removable canopy for easy change lipo battery and set up radio
– Strong Light Weight Construction
– Superb flying characteristics, plus an accurate scale outline
– High-quality hardware package included
Colour chart
Not update…
Packing
BOX DIMENSION
– 1520mm X 560mm X 360mm (L x W x H)
