Introducing

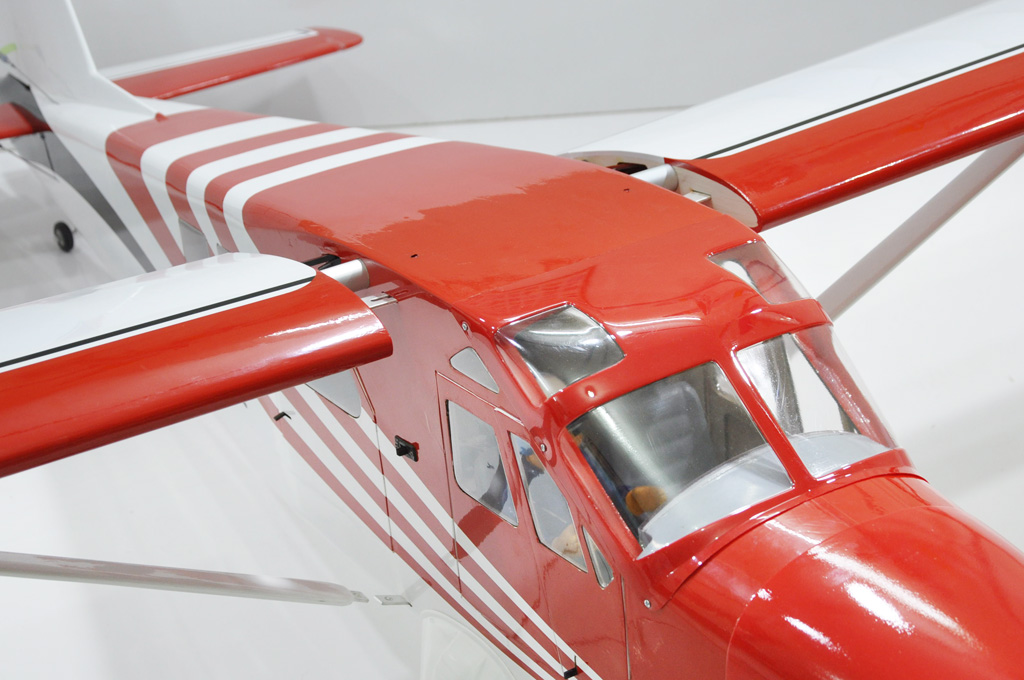

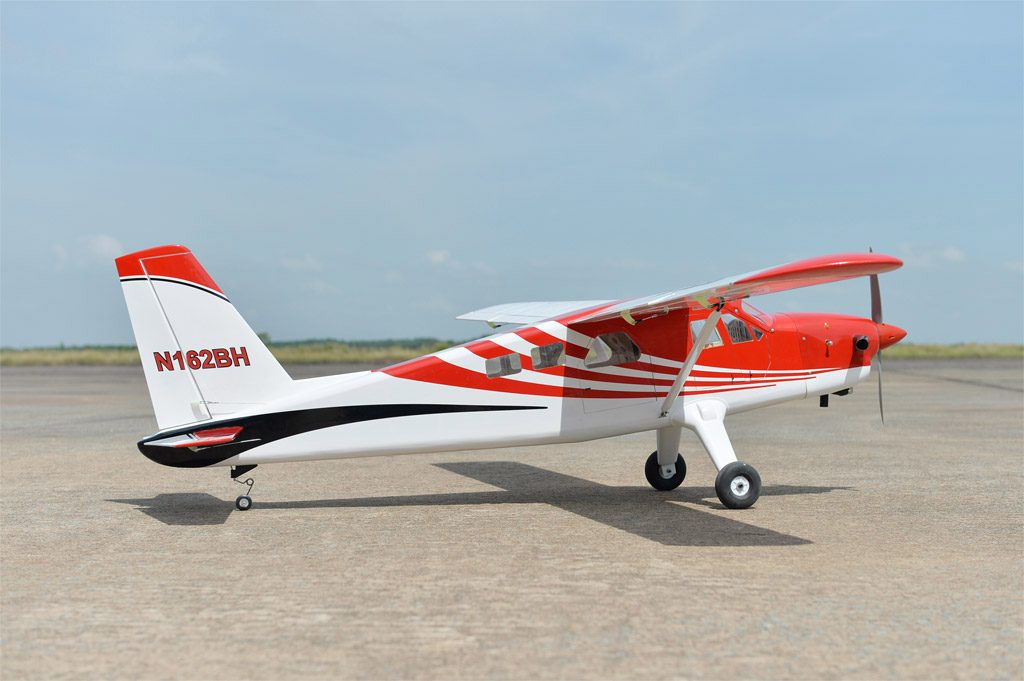

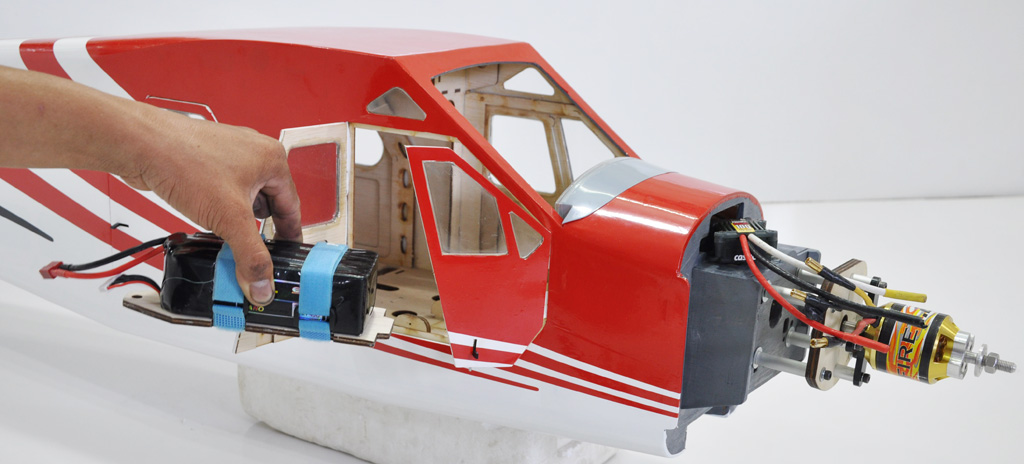

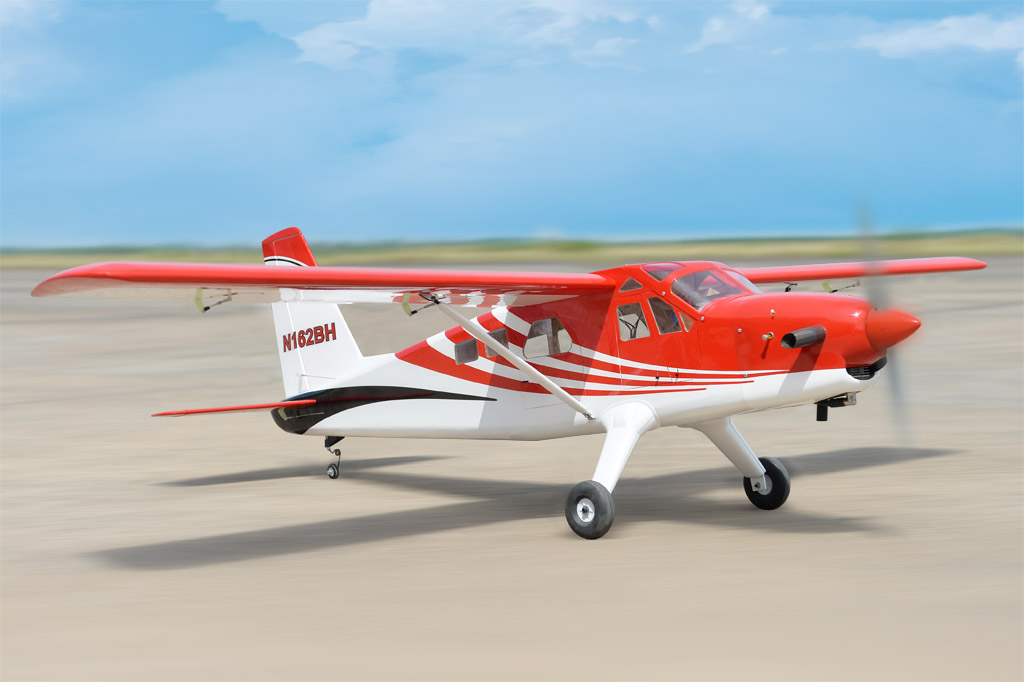

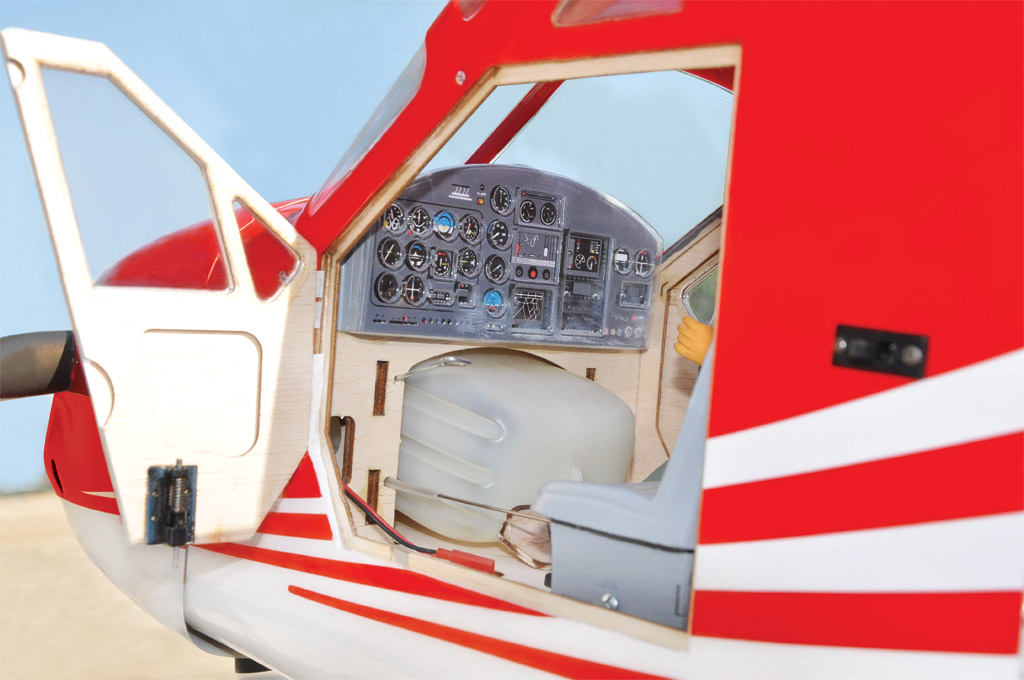

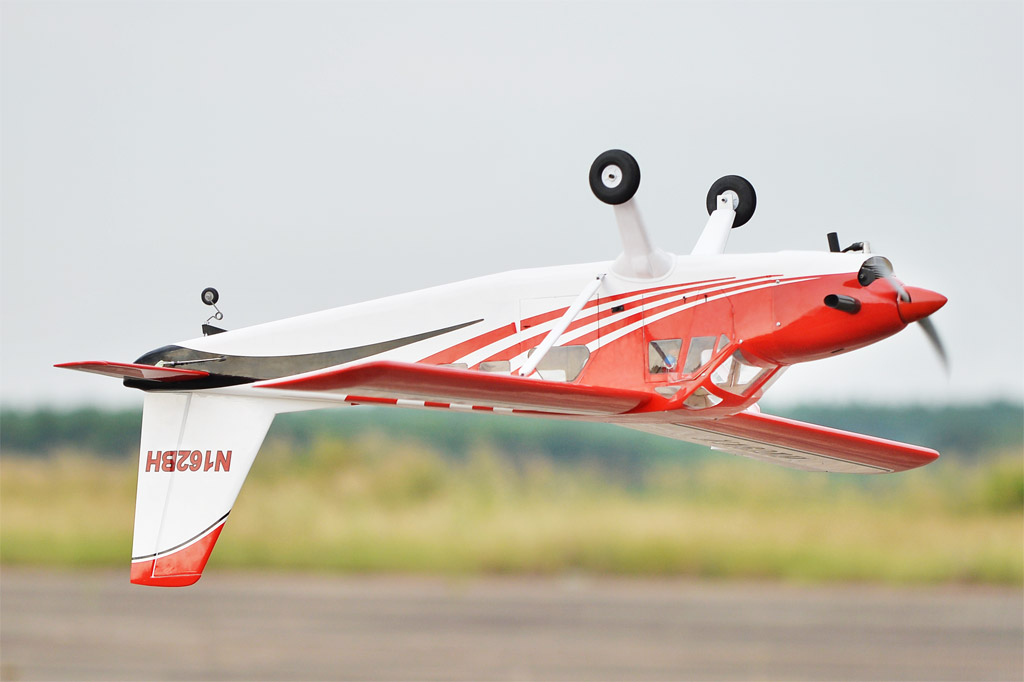

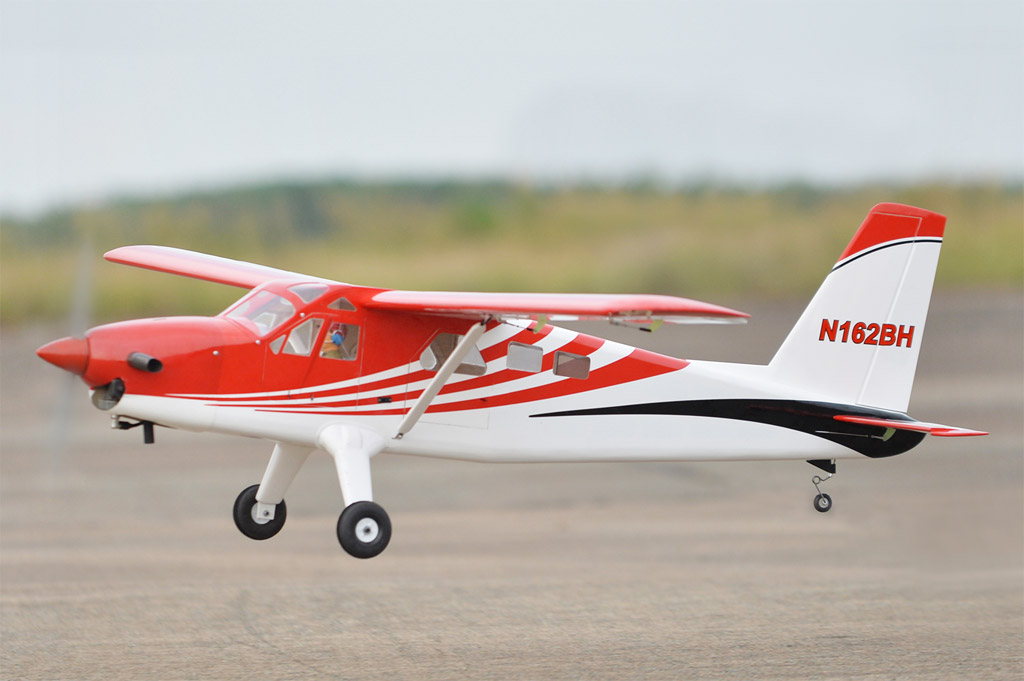

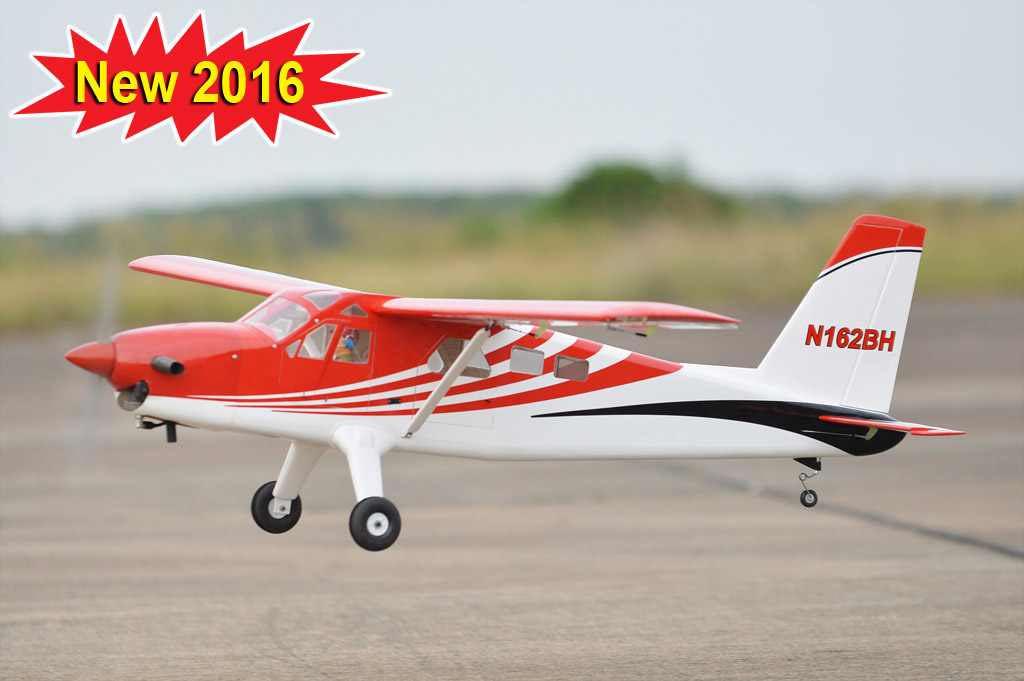

TURBO BEAVER 2250mm (88.58″) 20-30cc gas ARF
SPECIFICATION:
– Wingspan: 2,250 mm (88.58 in).
– Length: 1,675 mm ( 65.94 in).
– Weight: 5500gr.
– Wing area: 59.7 dm2.
– Wing loading: 92.1g/dm2.
– Wing type: USA 35-B Airfoil.
– Spinner: 70mm.
– Servo mount: 42mm x 21mm.
– Main gear type: Aluminium Hi-grade for main gear (included).
– Tail gear type: Spring wire for tail gear (included).
Parts listing required (not included):
– Radio: 06 channels minimum.
– Servo: 08 standard servos.
– Engine: 120 – 2 stroke, 20 – 30cc Gas.
– Motor: Brushless outrunner 1700-2300W, 295KV.
– Propeller: Suit with your engine.
Recommended motor and battery set up (not included):
– Motor: Admiral GP20 6320-295KV Brushless.
– Lipo cell: 6-10 cells 4,000-5,000mAh.
– Receiver battery: 6V/7.4V 1200-2000mAh.
– ESC: 80A.
Feature
– Designed for compatibility with both GP and EP flight
– Bolt-on two-piece wing for easy transport and setup at the field
– Strong Light Weight Construction
– High-quality hardware package included
Colour chart
Not update…
Packing
BOX DIMENSION
– 1530mm X 495mm X 355mm (L x W x H)
