Introducing
JU87 – STUKA 1920mm (78.59″) 20cc gas
SPECIFICATION:
– Wingspan: 1,920mm (75.59in).
– Length: 1,560mm (61.42in.)
– Weight: 5100gr
– Wing area: 62.4dm2.
– Wing loading: 81.7g/dm2.
– Servo mount: 42mm x 21mm.
– Wing type: Naca Airfoil.

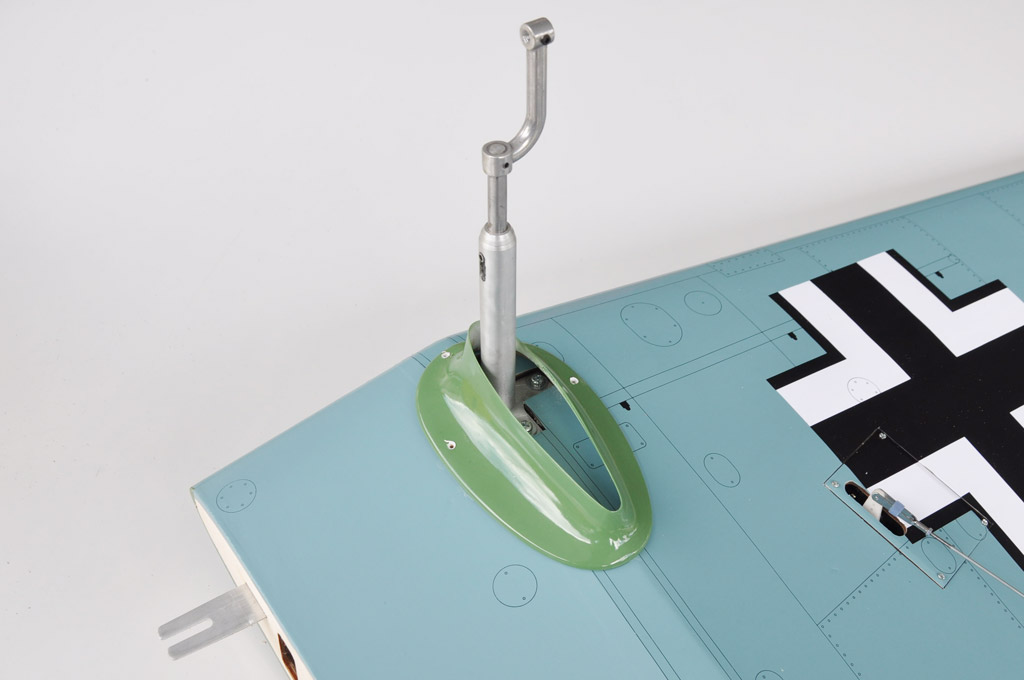

– Gear type: Oleo struts (included).
– Spinner: 95mm.
Parts listing required (not included):
– Radio: 6 channel minimum
– Servo: 9 standard servo: 2 aileron; 4 Flap; 1 elevator; 1 rudder; 1 throttle
– Recommended receiver battery: 4.8-6V / 1200-2000mAh NiMH
– Servo mount: 21mm x 42 mm
– Propeller: suit with your engine
– Engine: 1.20/ 2-stroke or 1.40/4-stroke glow engine or 20cc gas engine
Recommended motor and battery set up (not included):
– Motor: RIMFIRE .120
– Lipo cell: 5-6 cells / 5500 – 6000mAh
– Esc: 120-160A
– Plane type: Scale
Feature
– Designed for compatibility with both GP and EP flight
– Top quality balsa/light plywood construction
– Full-depth cockpit and instrument panel and pilot included

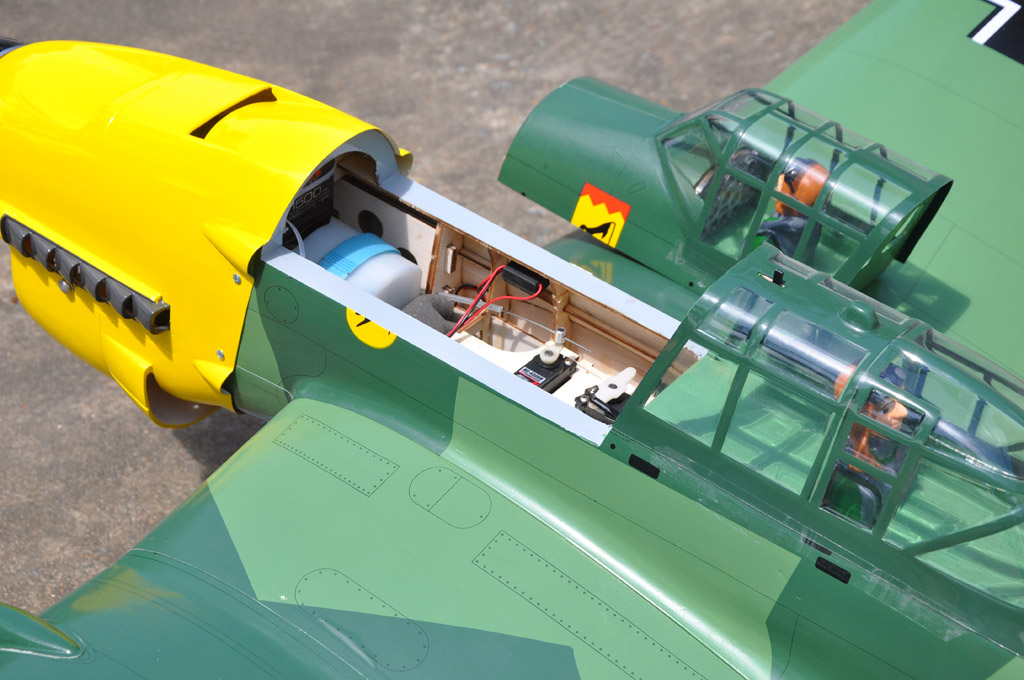

– Removable canopy for easy change lipo battery and set up radio
– Bolt-on two-piece wing for easy transport and setup at the field
– Strong Light Weight Construction
– Superb flying characteristics, plus an accurate scale outline
– High-quality hardware package included
Colour chart
Not update…
Packing
BOX DIMENSION
– 1240mm X 540mm X 320mm (L x W x H)
