Introducing

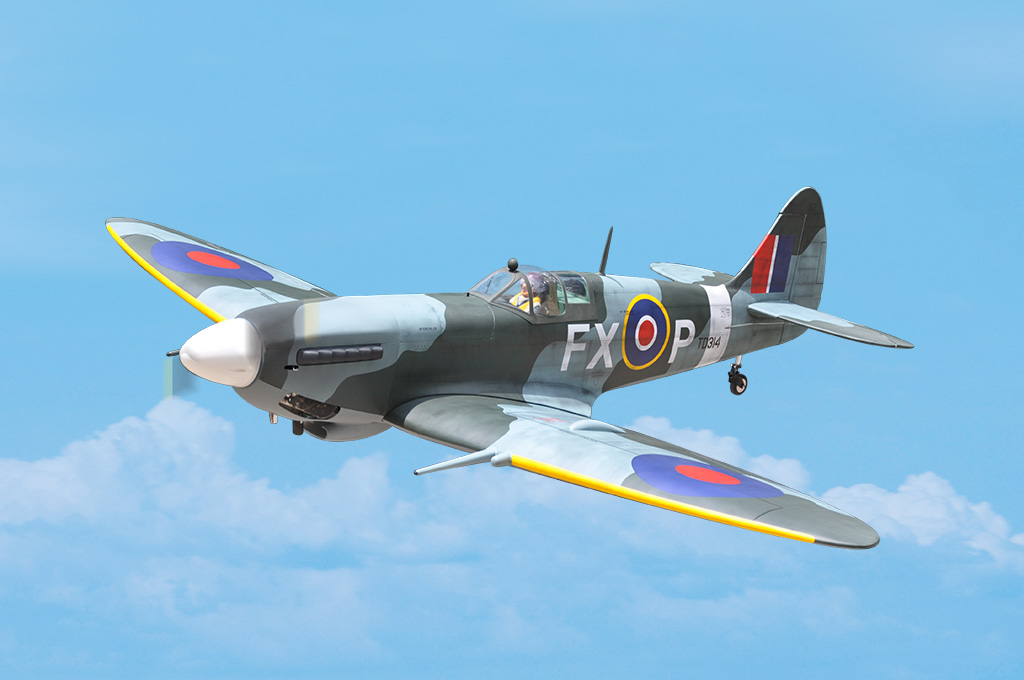

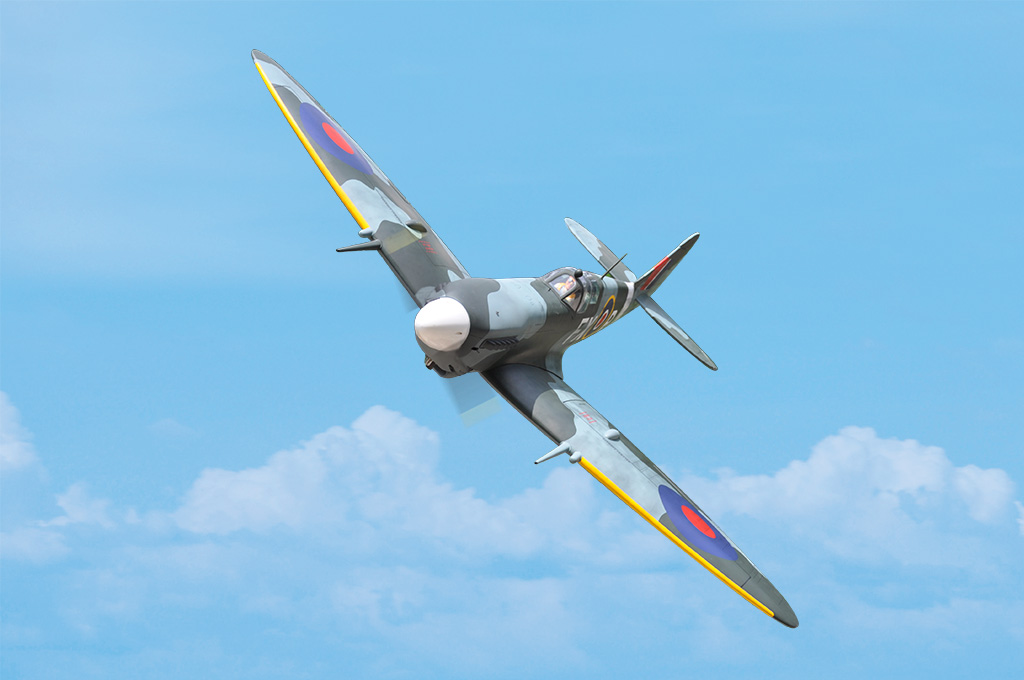

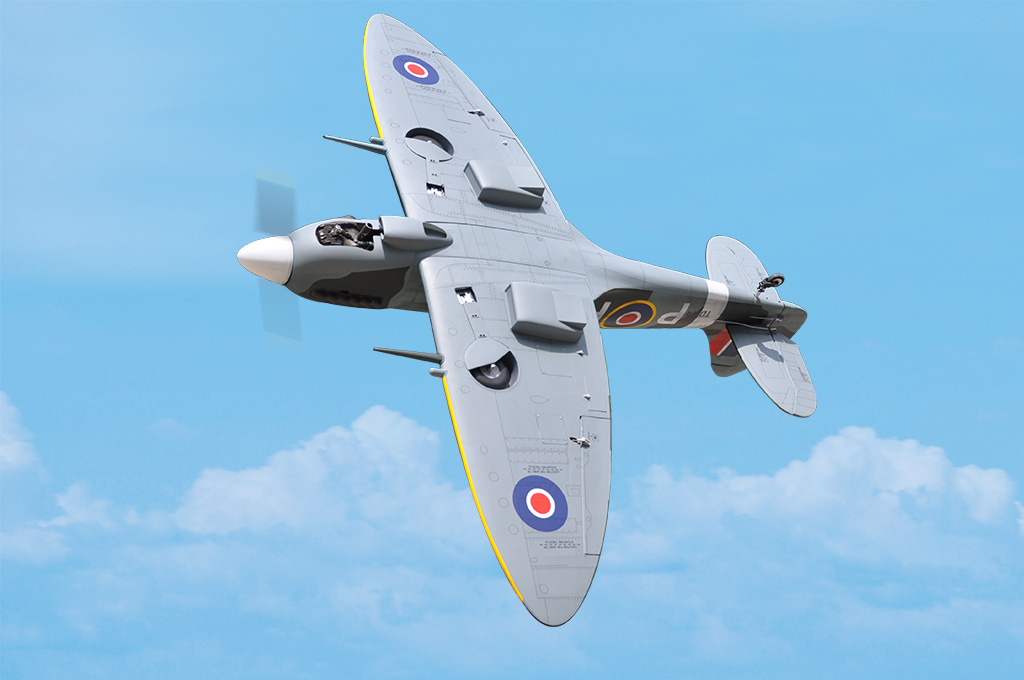

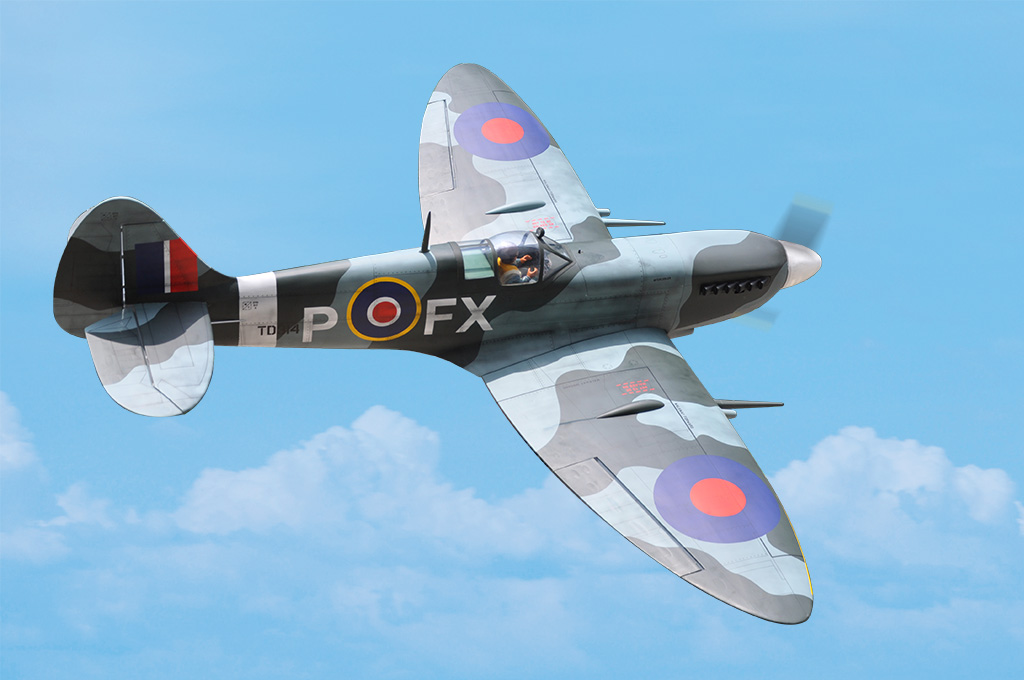

Spitfire MK 2000mm (78.74″) ARF W/Electric Retract 30-35cc ARF
PRODUCT DATA:
– Wingspan: 2,000 mm 78.74 in.
– Length: 1,730 mm 68 in.
– Weight: 7000-7500gr
– Wing area: 75 dm2.
– Wing loading: 96 g/dm2.
– Wing type: Naca Airfoil.
– Gear type: Electric Retract With CNC Suspension
Metal Struts, Electric Controller Box (included)
– Spinner size: 115mm (included)
– Servo: 8 standard hi-torque servo: 2 aileron; 2 flap; 2 elevator; 1 rudder;1 throttle (not included)
– Recommended receiver battery: 6.0V 2400/2600mAh NiMH (2) (not included)
– Servo mount: 21mm x 42 mm
– Propeller: suit with your engine
– Engine: 30-35CC gas engine (not included)
– Motor: Brushless outrunner 2500 – 3200W, 250KV.(Not Included)
– Experience level: Intermediate
– Plane type: Scale Military
RECOMMENDED MOTOR AND BATTERY SET UP
– Motor: RIMFIRE.1.60.
– Lipo cell: 12 cells 4,000-5,500mAh.
– Receiver battery: 6V/7.4V 1200-2200mAh Lipo.
– ESC: 80- 100A.
Feature
– Electric Retract Gear With CNC Suspension Metal Struts, Electric Controller Box (included)
– Separate fuselage and wing structure allows compact transportation
– Composite balsawood & material for super strong and light weight
– Covered with film polyester, providing durability, lightness, and ease of repair
– All ball linkages are included
– Full-depth cockpit and instrument panel and pilot included
– Bolt-on two-piece wing for easy transport and setup at the field
– Removable canopy for easy change lipo battery and set up radio
– Superb flying characteristics, plus an accurate scale outline
– High-quality hardware package included
Colour chart
Not update…
Packing
BOX DIMENSION
– 1440mm X 545mm X 510mm (L x W x H)
