Introducing

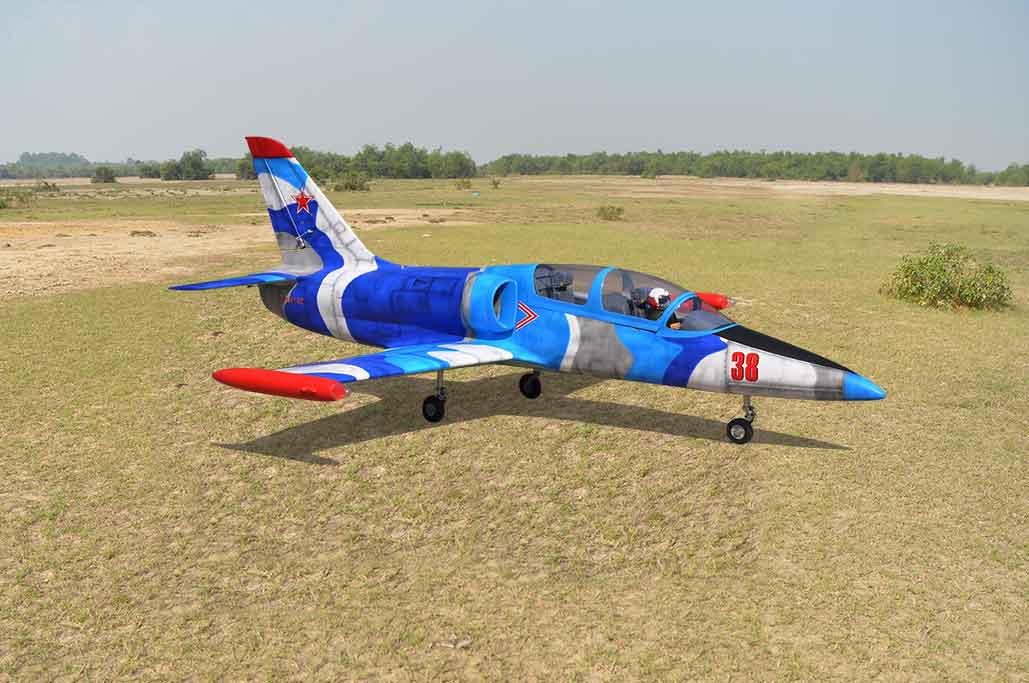

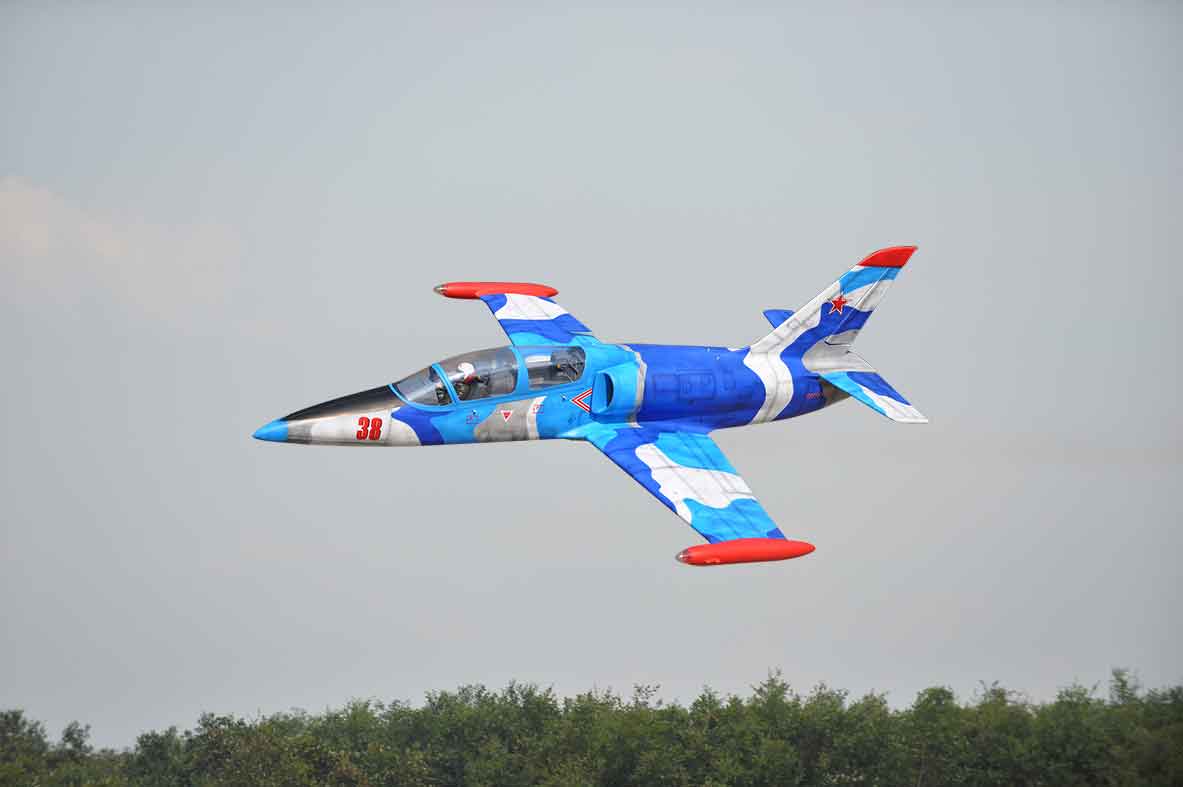

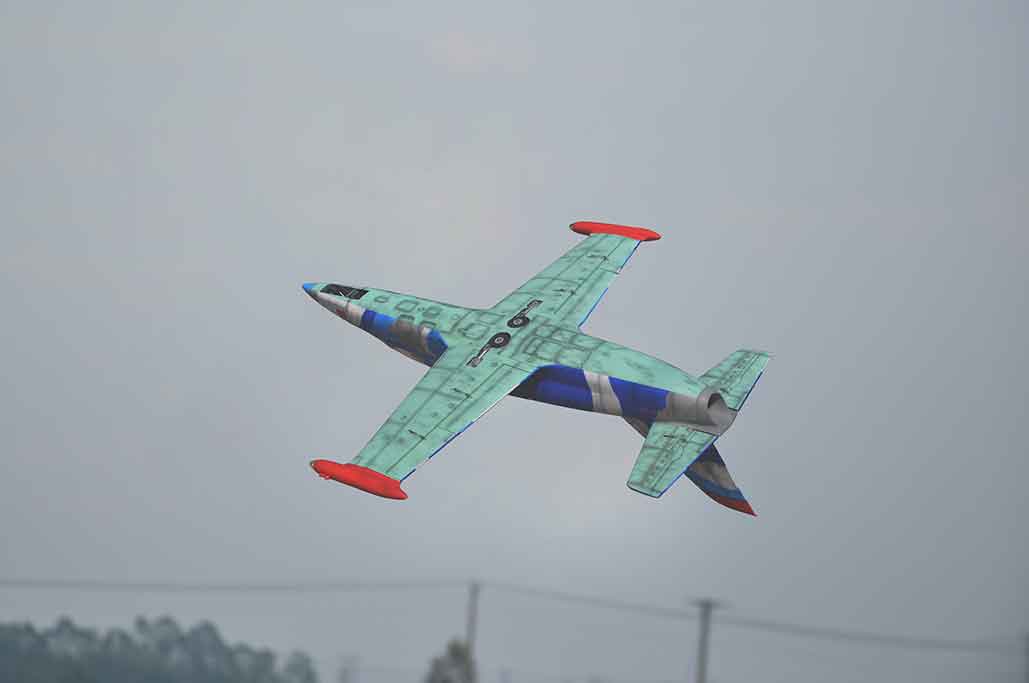

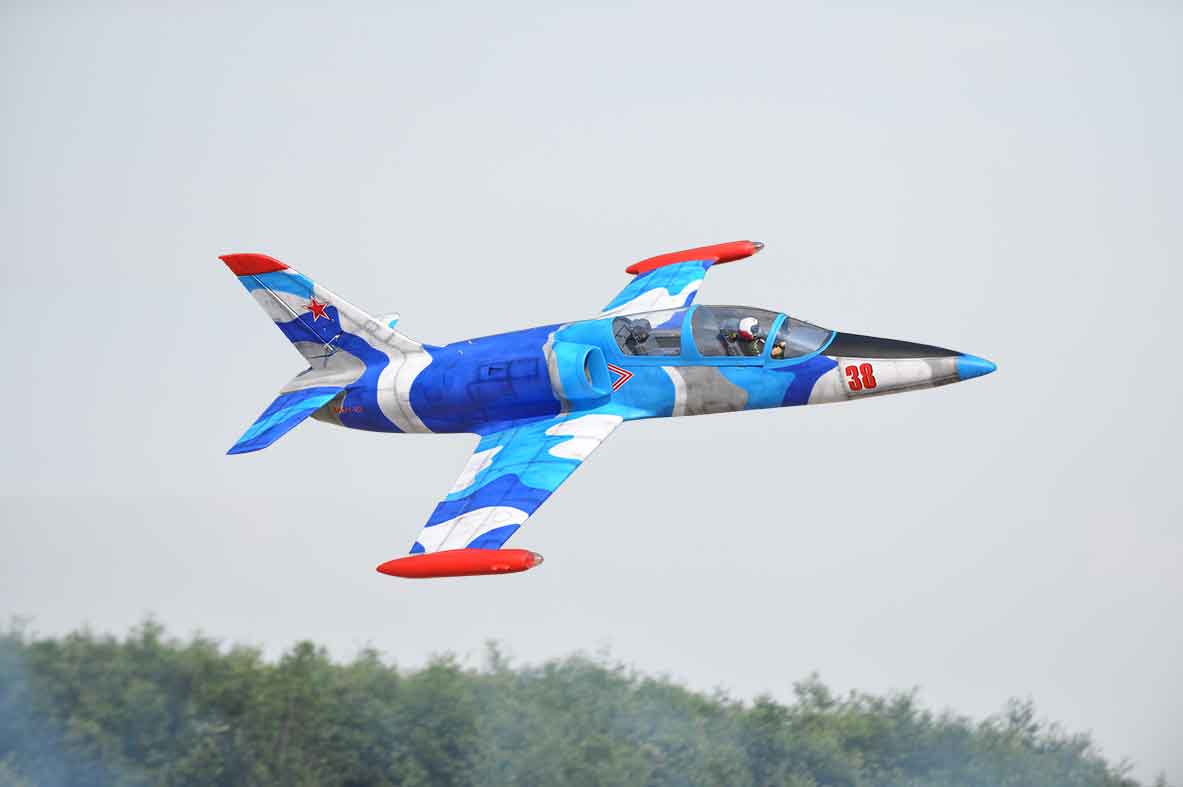

L-39 ALBATROS 1450mm (78.74″) EDF 90mm/Electric Retract
SPECIFICATION:
– Wingspan: 1,450mm (57.09in).
– Length: 1,860mm (73.23in).
– Flying weight: 4.6-4.9kg (10.12-10.78lbs)
– Wing area: 43dm2.
– Wing loading: 113g/dm2.
– Wing type: Naca airfoils.
– Gear type: Electric Retract Gear (included) with controller box (included).
Parts listing required (not included):
– Radio: 08 channels.
– Servo: 07 standard high torque servos, size: (29 x 13 x 30)mm
01 servos, size: (35 x 15)mm (nose gear).
– EDF: 90mm 10 Blade Impeller.
– Battery: 2 Packs * 5 Cells LIPO 37V.
– Speed control: 120A.
Recommended EDF and Battery set up (not included):
– EDF: DS51 – AXI – HDS 90mm 10 Blade Impeller Minimum thrust 4 kg.
– HET 700 – 68 – 1200KV.
– Lipo cell: 10 cells/5000mAh 55C.
– ESC: 120A Phoenix Castle.
Feature:
– Electric Retract with CNC Full Metal Suspension Fork Gear included
– Electric Controller Box Retract Gear included
– Top quality balsa/light plywood construction

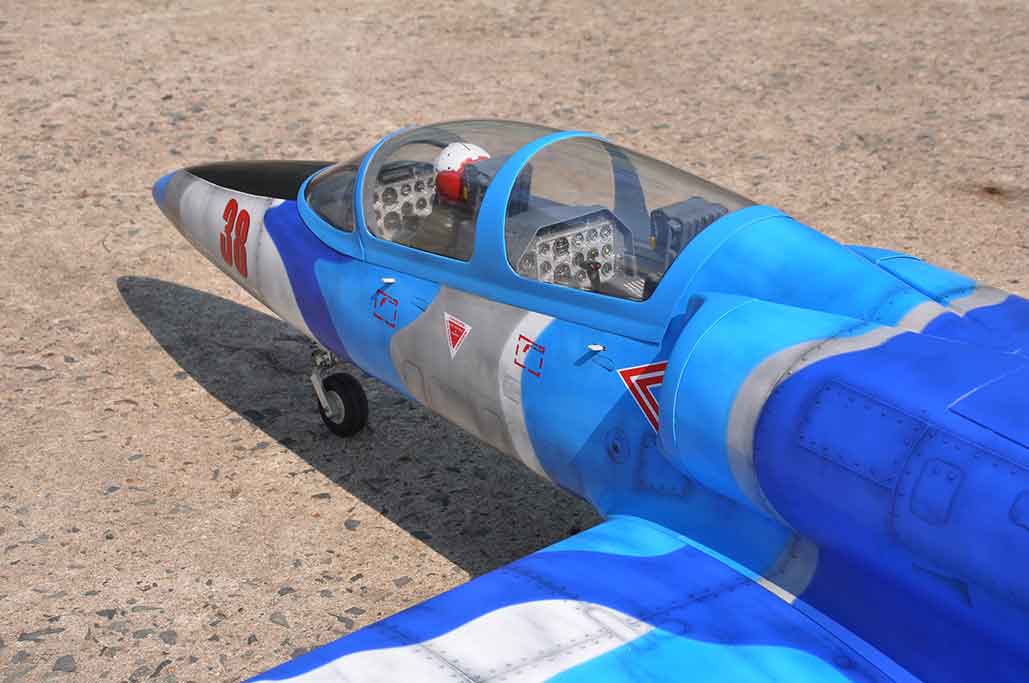

– Full-depth cockpit and instrument panel and pilot included
– Removable Top Hatch Canopy
– High-quality hardware package included
Colour chart
Not update…
Packing
BOX DIMENSION
– 1850mm X 470mm X 370mm (L x W x H)
