Introducing

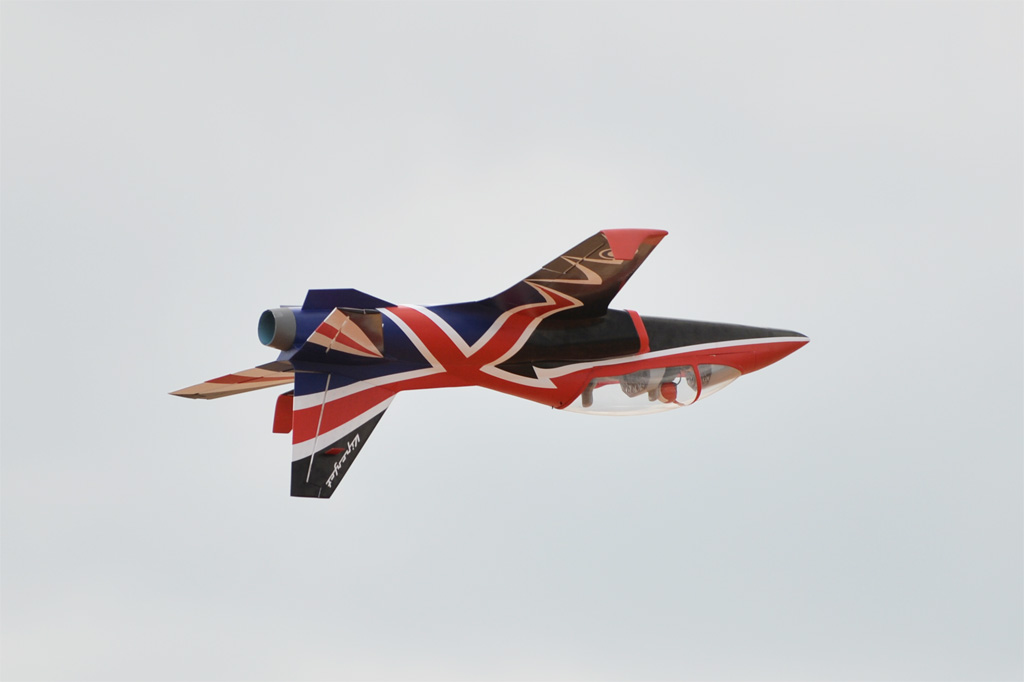

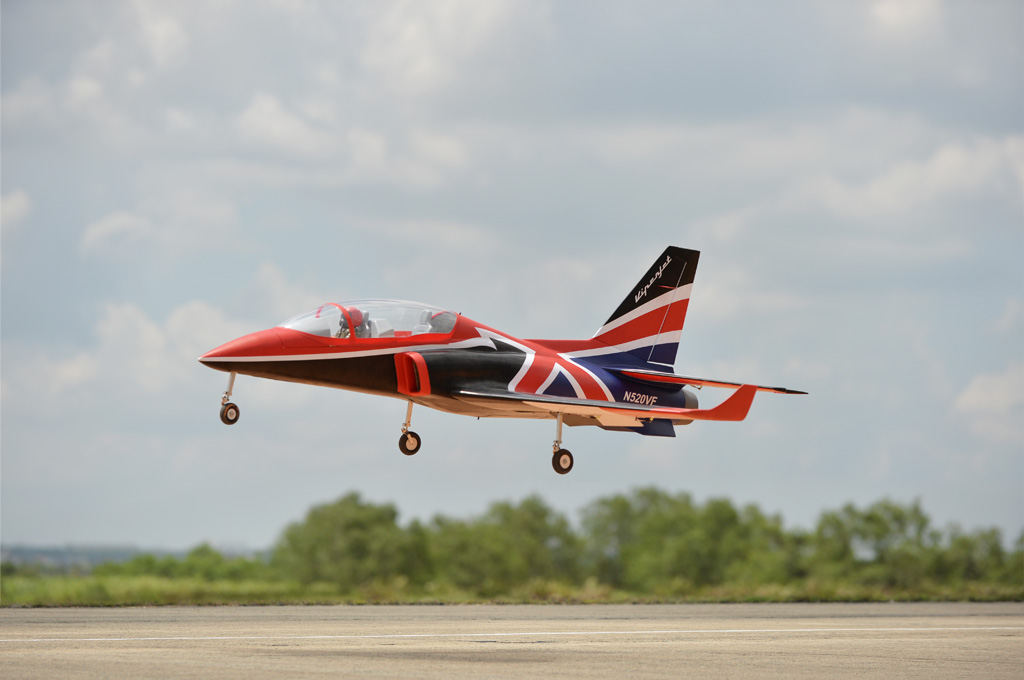

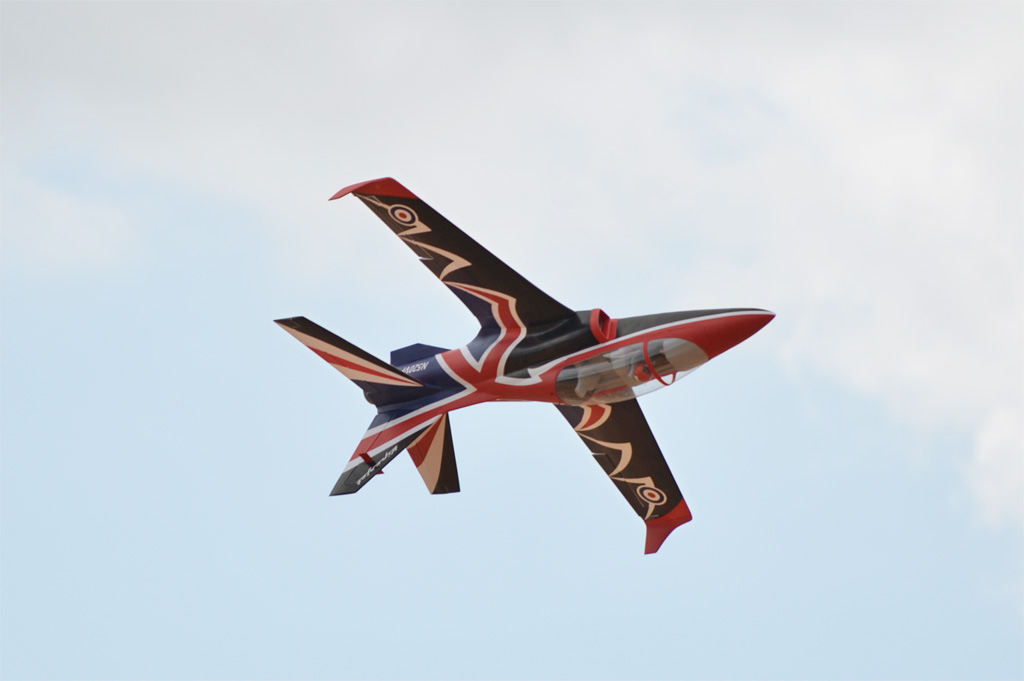

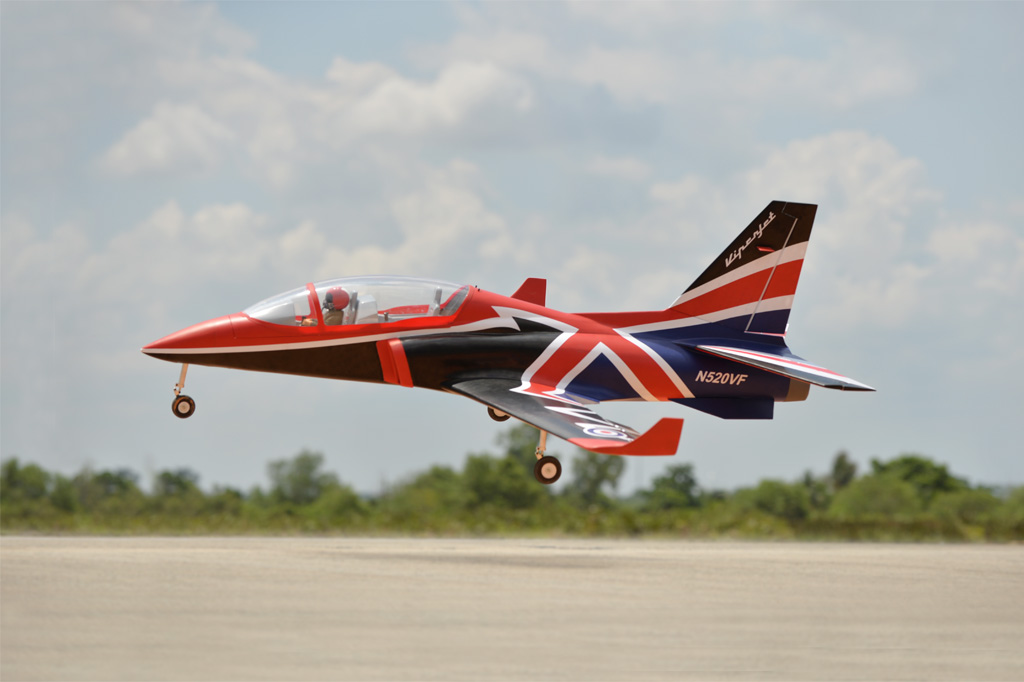

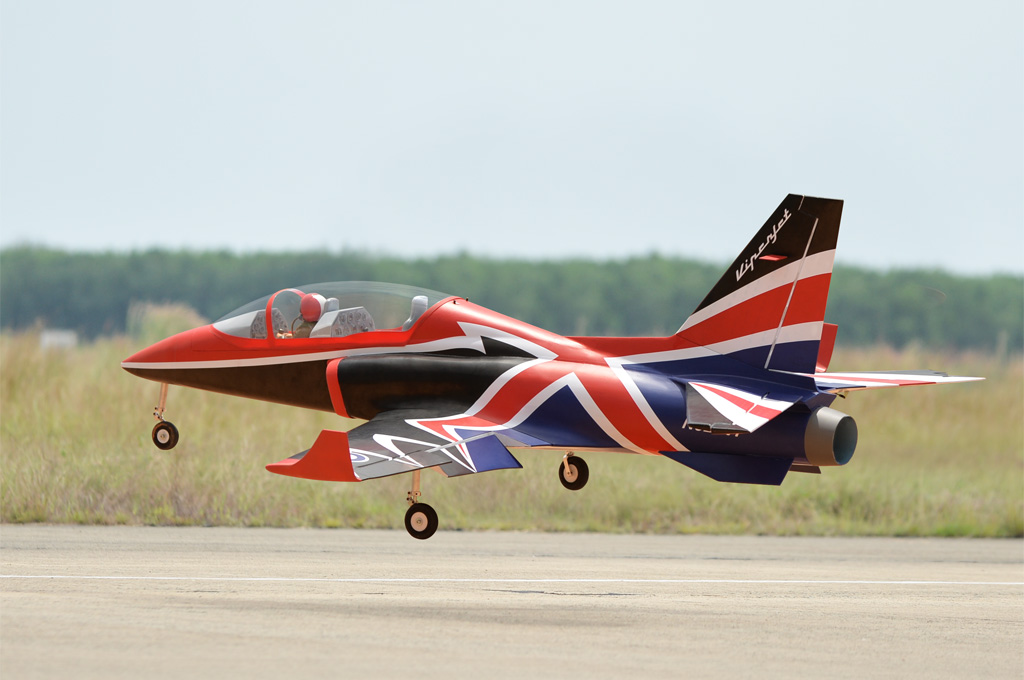

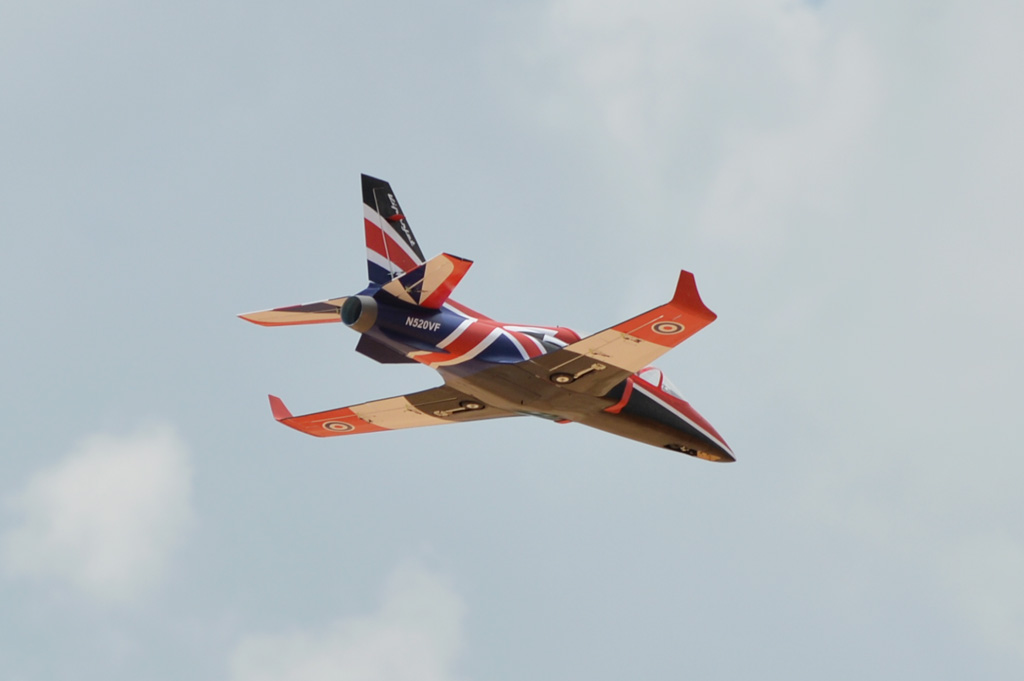

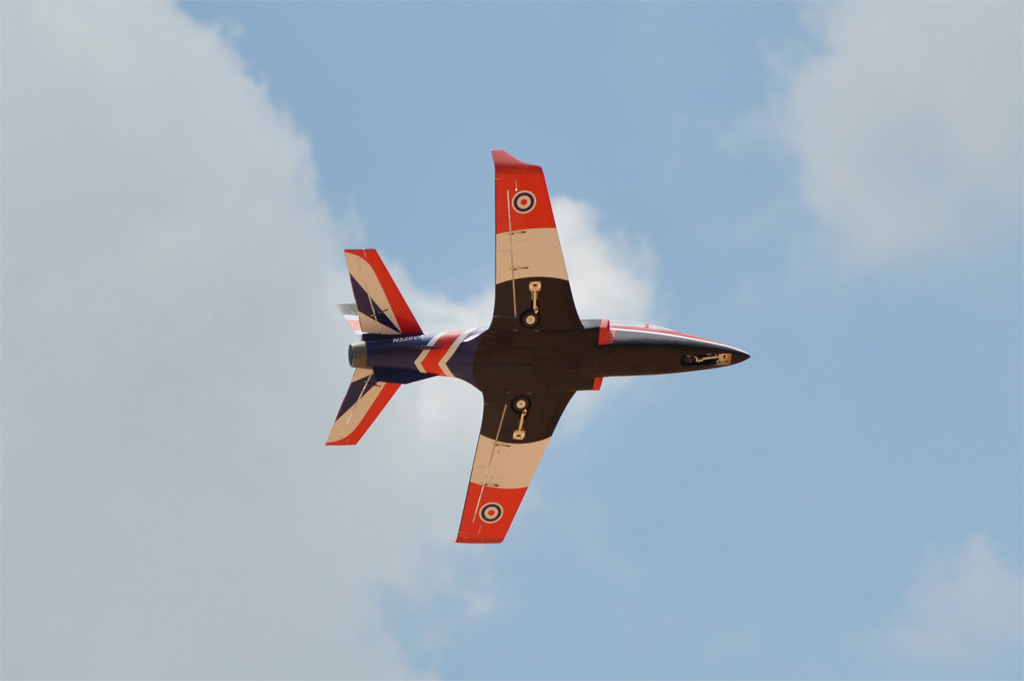

VIPER JET MKII 1885 mm (74.21″)120mm EDF W/Electric retract
SPECIFICATION:
– Wingspan: 1885 mm (74.21 in).
– Length: 1820mm (71.65 in).
– Weight: 8.9 – 9.1kg (19.58 – 20 lbs).
– Wing area: 62.2dm2.
– Wing loading: 143.1g/dm2.
– Wing type: Naca Airfoil.
– Servo mount: 33 x 17(mm).
– Gear type: Electric retract gear with oleo struts for main gear and controller box (included) .
Parts listing required (not included):
– Radio: 8 channels minimum.
– Servo: 8 standard high torque servos, size: (33 x 17)mm.
– Engine: EDF 120mm.
– Battery: 10S – 12S LIPO 37V- 44.4 V.
– ESC: 160A.
Recommended EDF and Battery set up (not included):
– Engine: Ducted Fan EDF JETFAN-120 eco Ejets+ HET 800-68-685.
Battery: 12S LIPO – 44.4 V ≥ 6000mAh 70C.
– Or Engine: Ducted Fan EDF Schubeler DS-86-AXI HDS 120mm + TP 5660-9D motor.
Battery: 10S LIPO – 37V ≥ 6000mAh 70C.
– ESC: 160A Phoenix Castle.
Feature:
– Electric Retract with CNC Full Metal Suspension Fork Gear included
– Electric Controller Box Retract Gear included
– Full-depth cockpit and instrument panel and pilot included
– Removable Top Hatch Canopy
– Strong Light Weight Construction
– Superb flying characteristics, plus an accurate scale outline
– High-quality hardware package included
Colour chart
Not update…
Packing
BOX DIMENSION
– 1820mm X 490mm X 440mm (L x W x H)
