Introducing

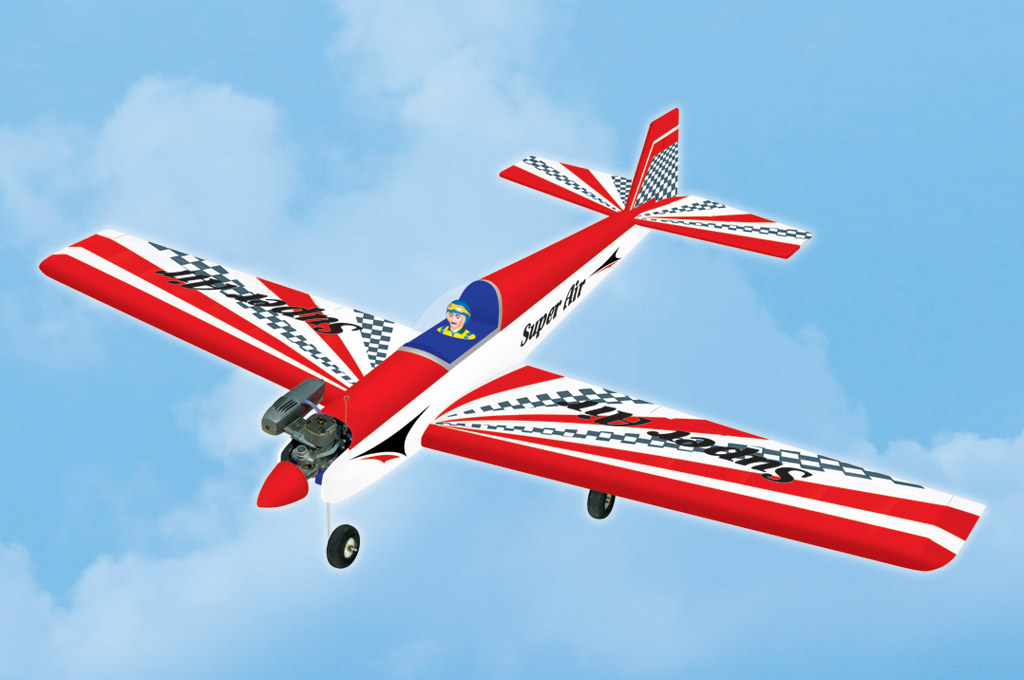

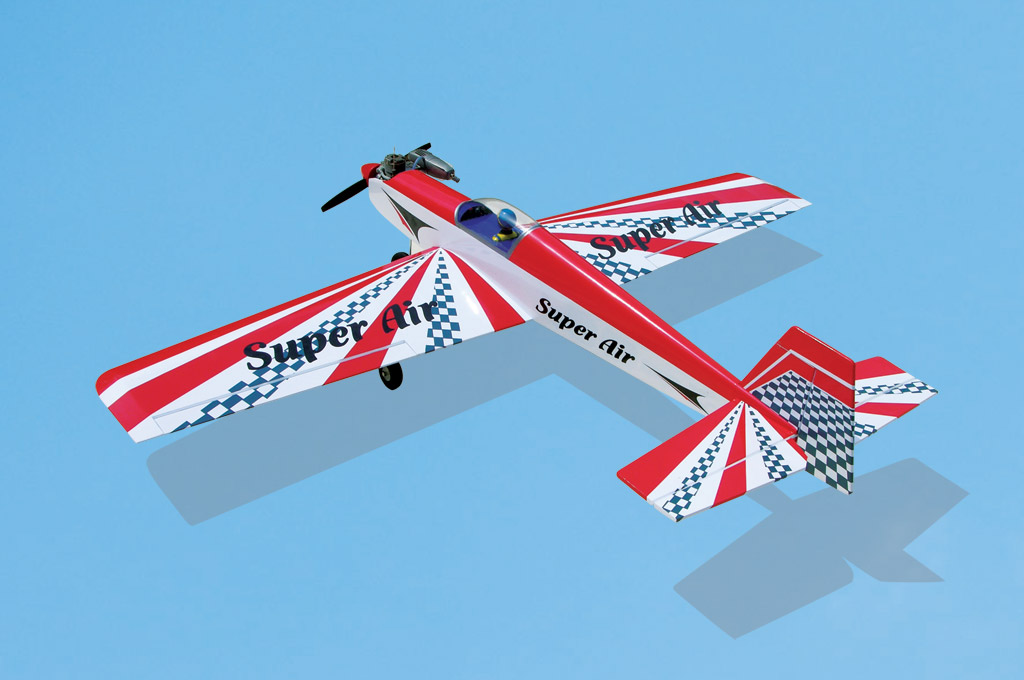

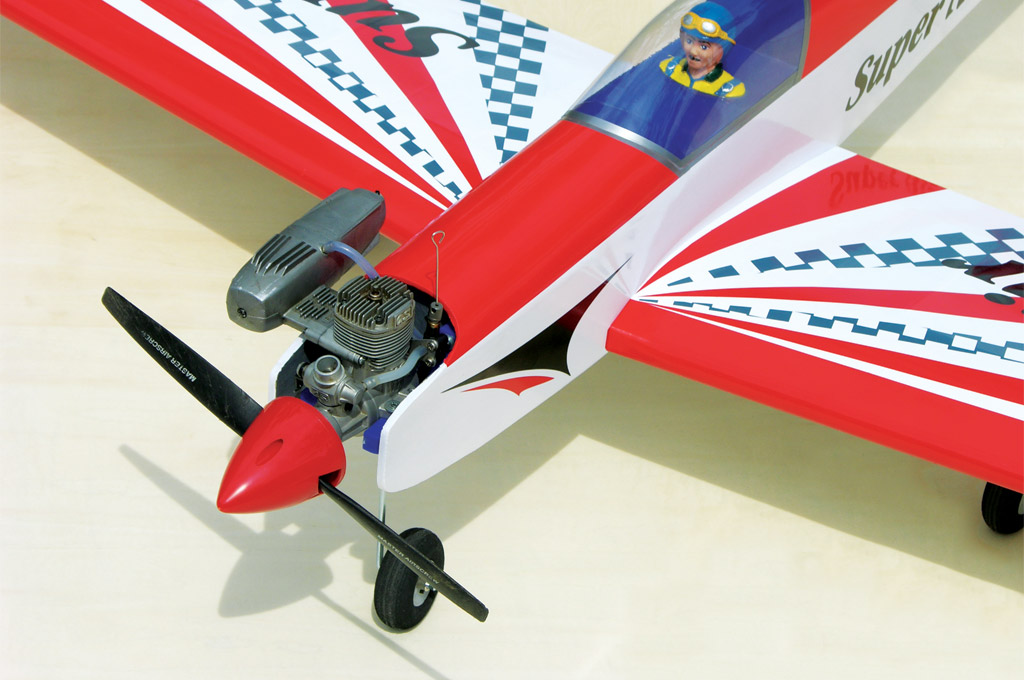

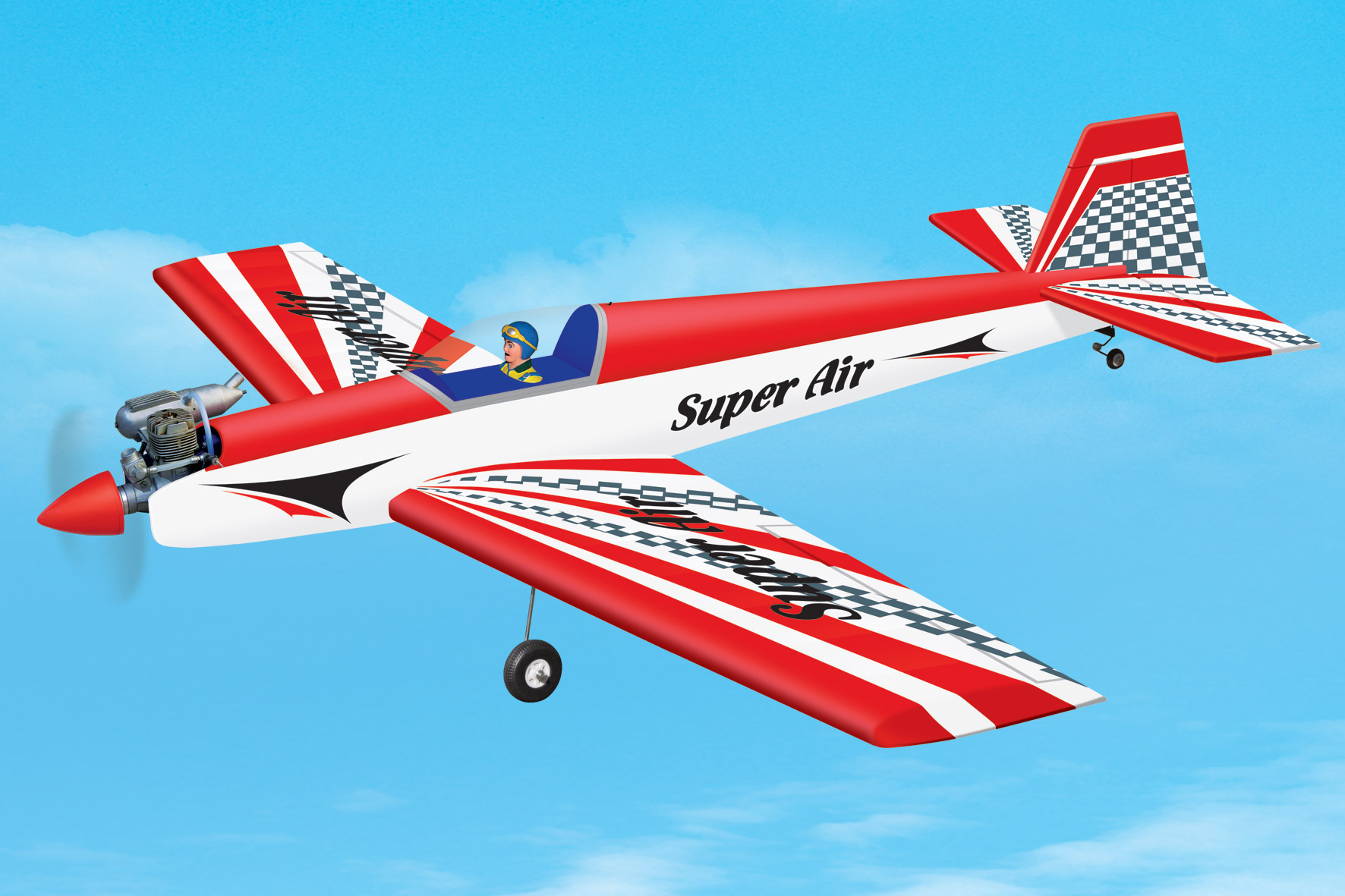

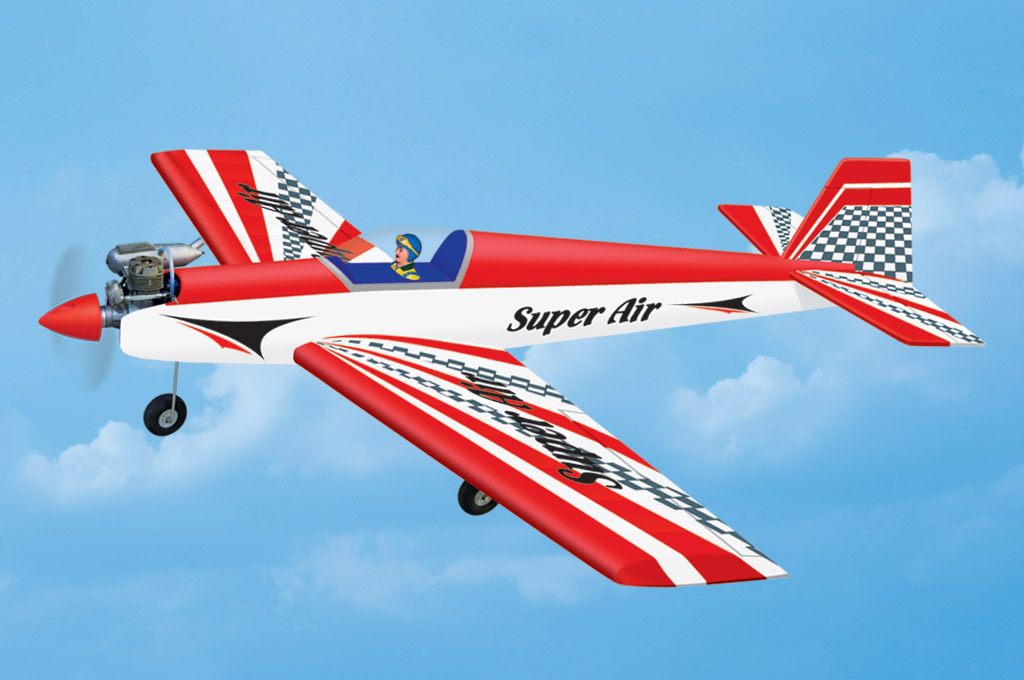

Super Air 1,550mm (61.02″) size 40-46
PRODUCT DATA:
– Wingspan: 1,550 mm 61.02 in.
– Length: 1,250 mm 49.21 in.
– Weight: 2400gr
– Wing area: 38.2dm2.
– Wing loading: 62.9g/dm2.
– Wing type: Naca Airfoil.
– Spinner size: 58mm
– Servo mount: 21mm x 42 mm
– Gear type: Aluminium Hi-grade for main gear and wire tail gear.
Parts listing required (not included):
– Radio: 04 channels.
– Servo: 05 servos.
– Engine: 40-46 cu.in 2 stroke; 52 cu.in 4 stroke.
– Motor: Brushless outrunner 1000-1800W, 800KV.
– Propeller: Suit with your engine.
Recommended Motor and Battery set up (not included):
– Motor: RIMFIRE.55.
– Lipo cell: 6 cells 4,000-5,000mAh.
– ESC: 60A.
Feature
Designed for compatibility with both GP and EP flight
– Extremely lightweight laser-cut all-wood construction
– All hardware included- Removable canopy for easy change lipo battery and set up radio
– Superb flying characteristics, plus an accurate scale outline
– High-quality hardware package included
Colour chart
Not update…
Packing
BOX DIMENSION
– 1140mm X 350mm X 162mm (L x W x H)
