Introducing

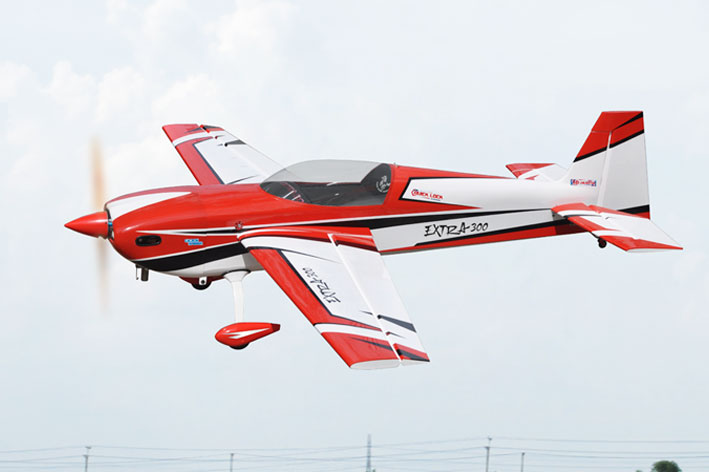

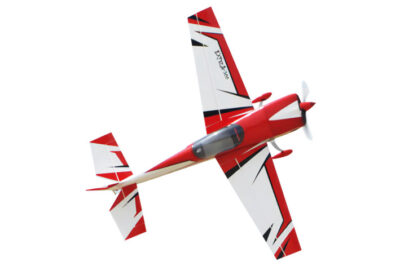

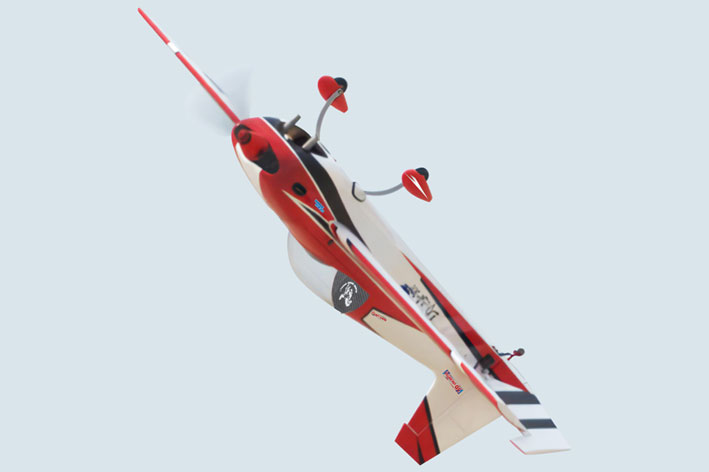

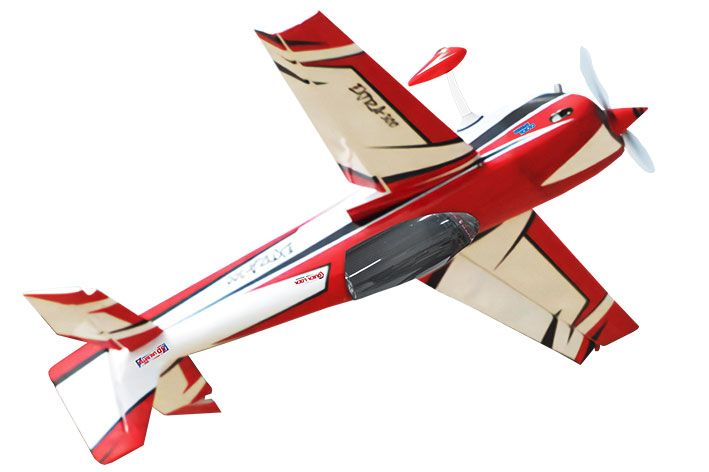

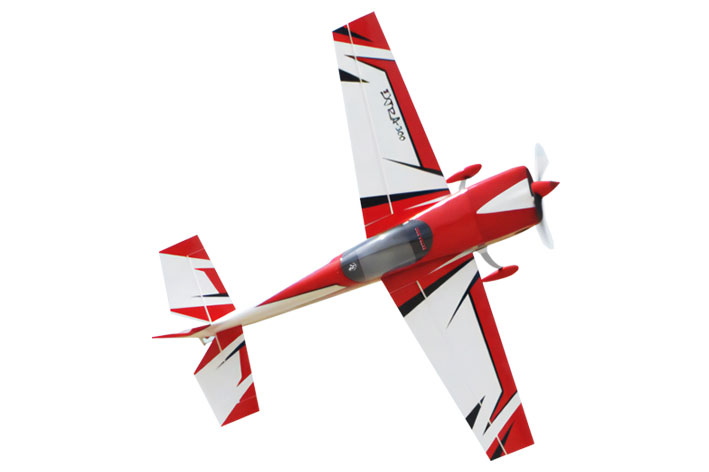

Extra 300S 2260mm (89″) 60cc ARF
SPECIFICATION:
– Wingspan: 2260 mm (89 in).
– Length: 2250 mm (88.5 in).
– Weight: 8500gr
– Wing area: 87.9 dm2.
– Wing loading: 96.7 g/dm2.
– Servo mount: 42mm x 21mm.
– Wing type: Naca Airfoil.
– Spinner : 95mm (included).
– Gear type: Carbon fiber for main gear (included) and Carbon fiber tail gear (included).
– Covering type: Genuine oracover.
Parts listing required (not included):
– Radio: 06 channels minimum.
– Servo: 06 servos (HV High torque steel gear servo).
– Engine: 76cc gas.
– Motor: Brushless outrunner 5000 – 6500W, 230KV.
– Propeller: Suit with your engine.
Recommended Motor and Battery set up (not included):
– Motor: RIMFIRE 60cc.
– Lipo cell: 12 cells 5,000-7,000mAh.
– Receiver battery: 6-7.4V/ 2200-3200mAh Lipo.
– ESC: 120A.
– Torque servos: 30kg/cm – 40kg/cm.
FEATURES:
– Equipped with a patented Smart Lock system, allowing wings and stabilizers to be mounted with speed, accuracy, and reliability.
– Pre-installed Hinges, glued, and pinned for maximum strength and reliability.
– Magnetic Canopy Mount. Quick-release canopy system utilizing precision pin magnets, ensuring both security and ease of use.
– Modular Design. Wings and stabilizers are fully removable for transport and storage convenience.
– Cowling is internally mounted, leaving no visible screws on the exterior, with only two accessible screws underneath for convenient installation.
– Open fuselage design allows for simple and efficient canister installation.
– The fuselage and wings are crafted from high-quality wood combined with advanced composite materials, ensuring exceptional rigidity and strength.
– Durable carbon fiber main landing gear included in the kit.
– Lightweight and robust carbon tail gear included in the kit.
– High-performance carbon spinner with aluminum backplate designed for high-speed operation included in the kit.
– High-gloss fiberglass wheel pants included, combining aesthetics with functionality included in the kit.
– High quality accessories included with the kit.
Colour chart:
Not update…
Packing:
BOX DIMENSION
– 1830mm X 590mm X 500mm (L x W x H)
ENGINE AND SERVO RECOMMENDED (NOT INCLUDED WITH THE KIT)
– 60-76cc Gas Engine (x1)
– Servo for Aileron 45-55 kg (x2) – Standard size 20 x 40mm
– Servo for Elevator 30-40 kg (x2) – Standard size 20 x 40mm
– Servo for Rudder 30-40 kg (x1) – Standard size 20 x 40mm
– Servo for Throttle 10-20 kg (x1) – Standard size 20 x 40m
