Introducing

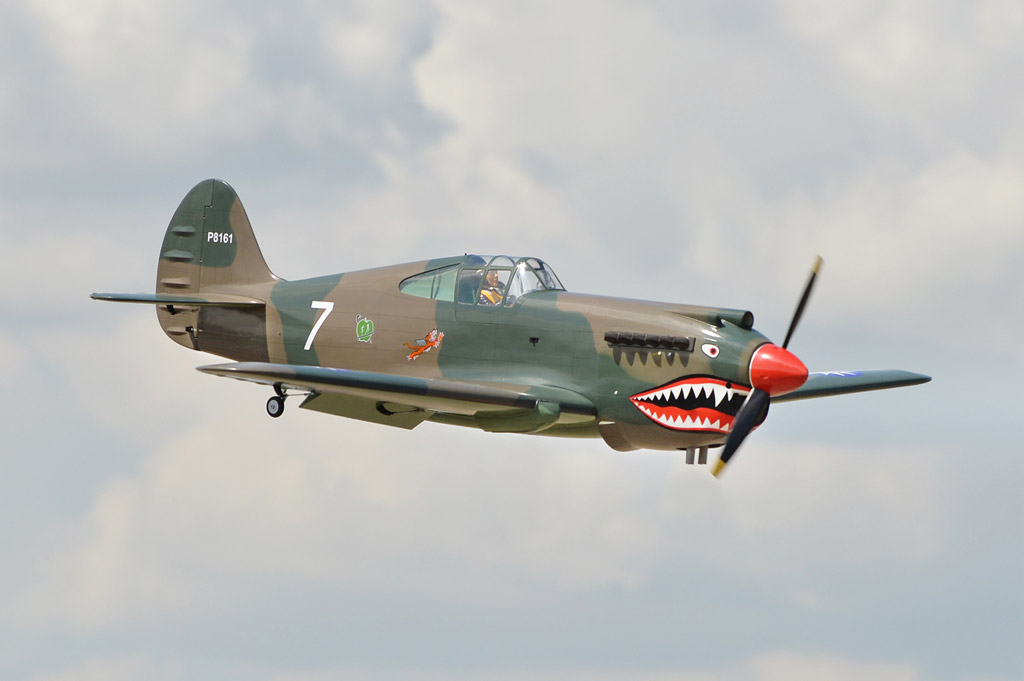

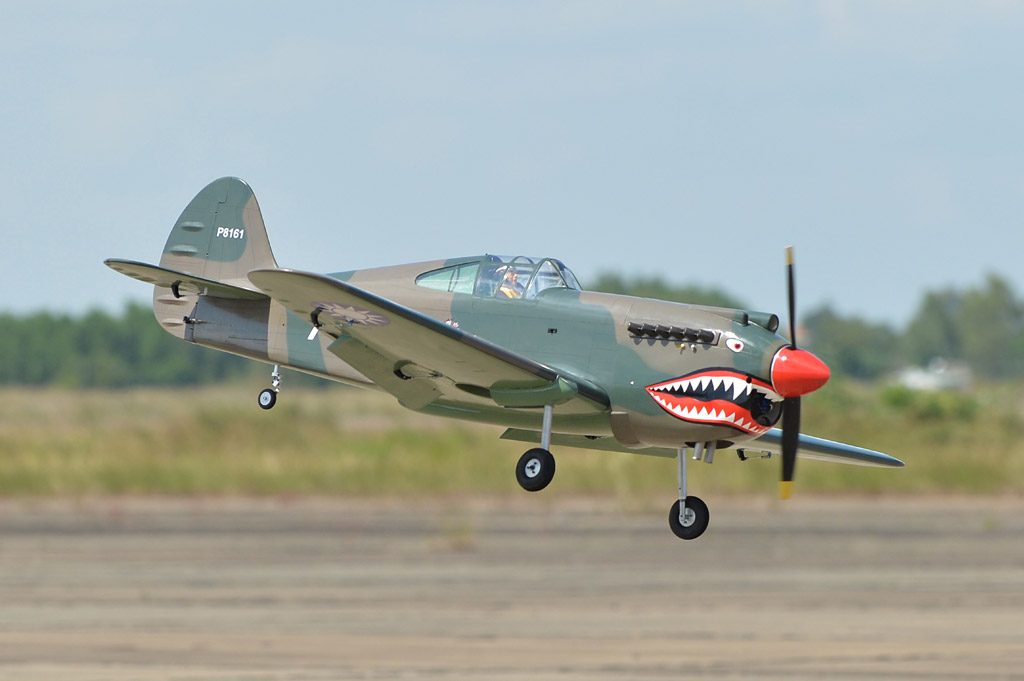

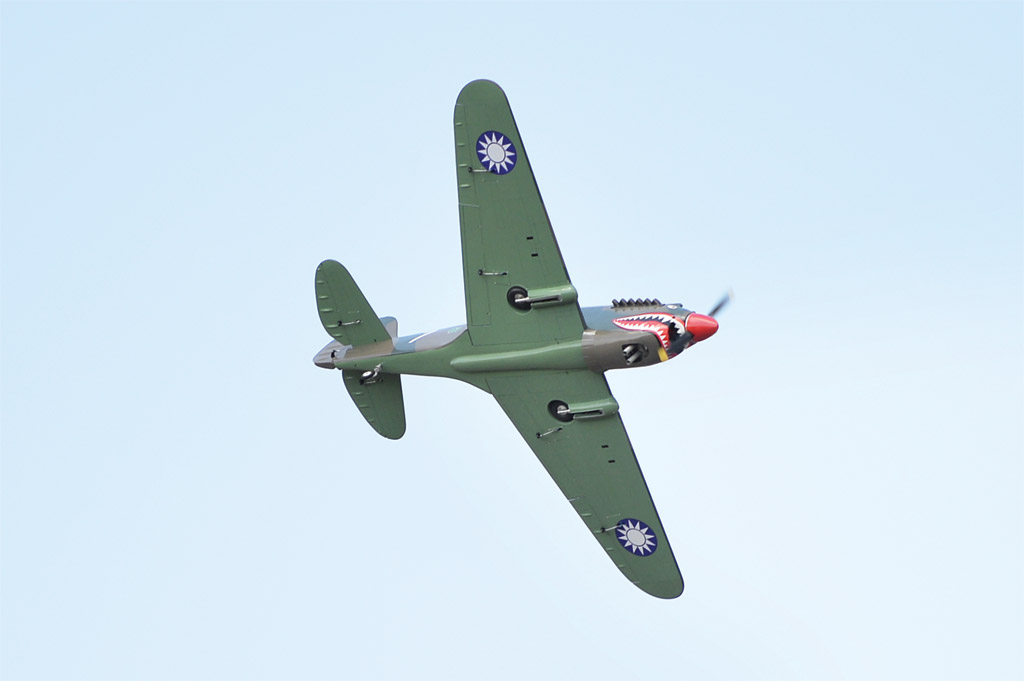

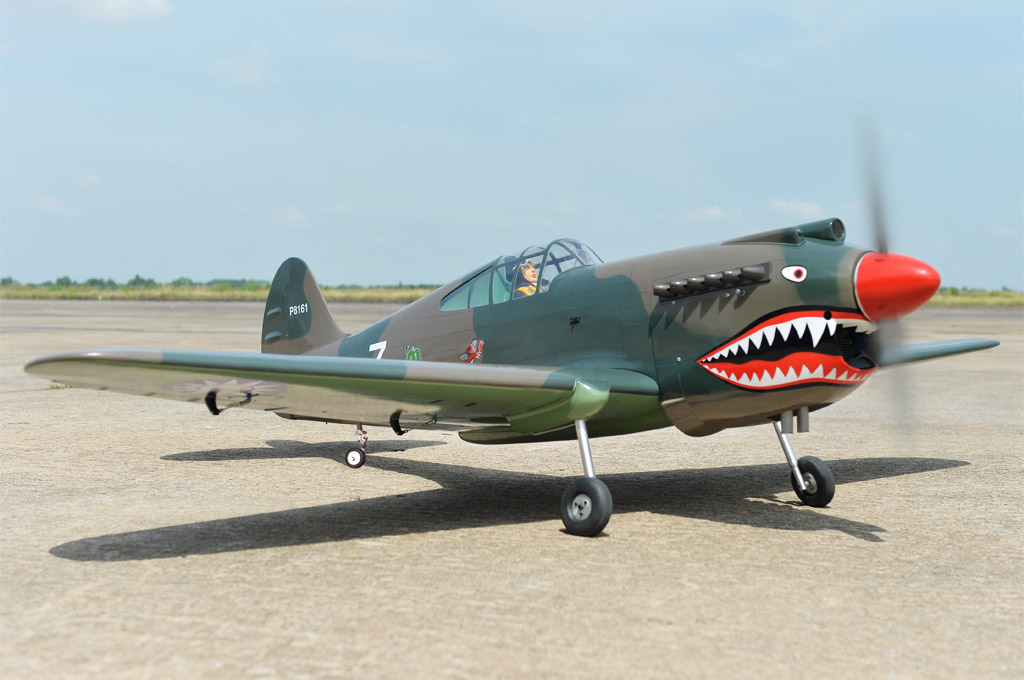

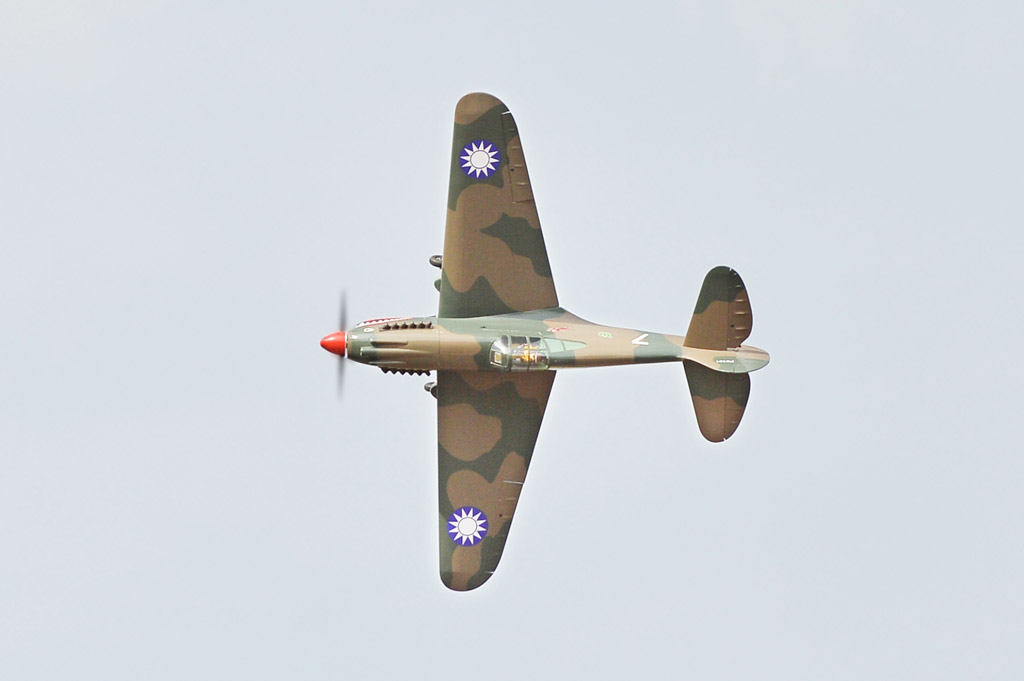

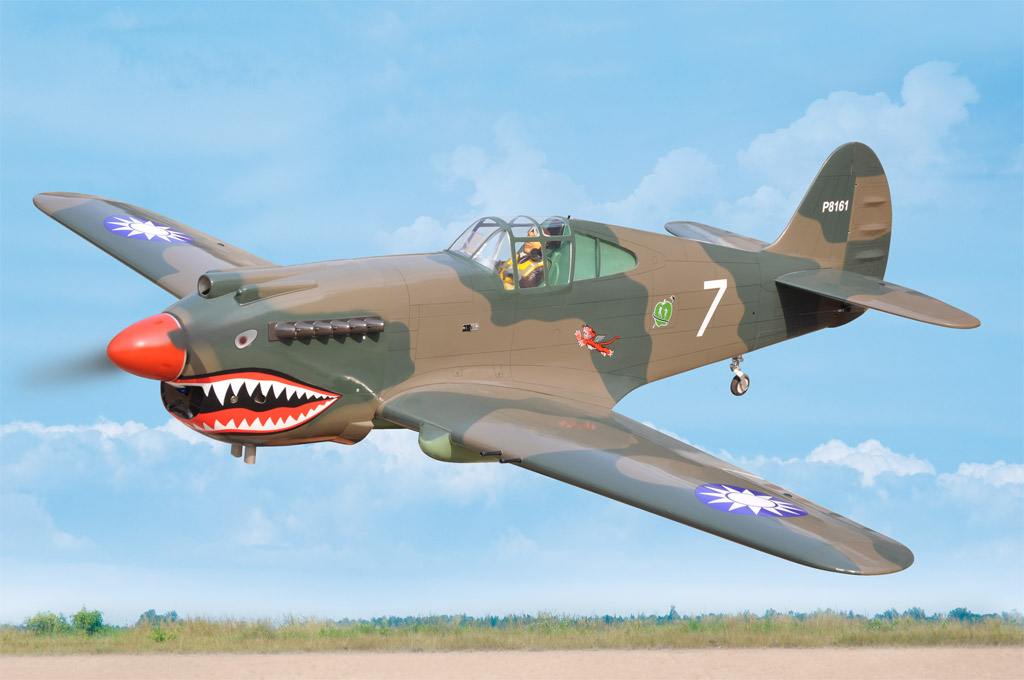

P-40C Tomahawk 2276mm (89.5″) 50-60cc gas/ Electric retract
SPECIFICATION
– Wingspan: 2,276 mm (89.5 in).
– Length: 1,968 mm (77.5 in).
– Weight: 10800gr
– Wing area: 90.14 dm2.
– Wing loading: 120 g/dm2.
– Wing type: Naca Airfoil.
– Servo mount: (42 x 21) mm.
– Spinner: 115mm (included).
– Main gear type: Rotary 90 degree electric retract gear with oleo struts for main gear (included).
– Tail gear type: Electric retract gear with oleo struts for tail gear (included).
Parts listing required (not included):
– Radio: 7 channels minimum.
– Servo: 09 Standard high torque servos.
– Engine: 50 – 60cc Gas.
– Motor: Brushless outrunner 5000 – 6500W, 230KV.
– Propeller: Suit with your engine
Recommended receiver battery (not included):
– Motor: RIMFIRE. 50 cc.
– Lipo cell: 12 cells 5500 – 6000mAh.
– Receiver battery: 6.0V-7.4V, 2200-3200mAh Lipo.
– ESC: 120A.
Feature:
– Designed for compatibility with both GP and EP flight
– Top quality balsa/light plywood construction
– Electric Retract included

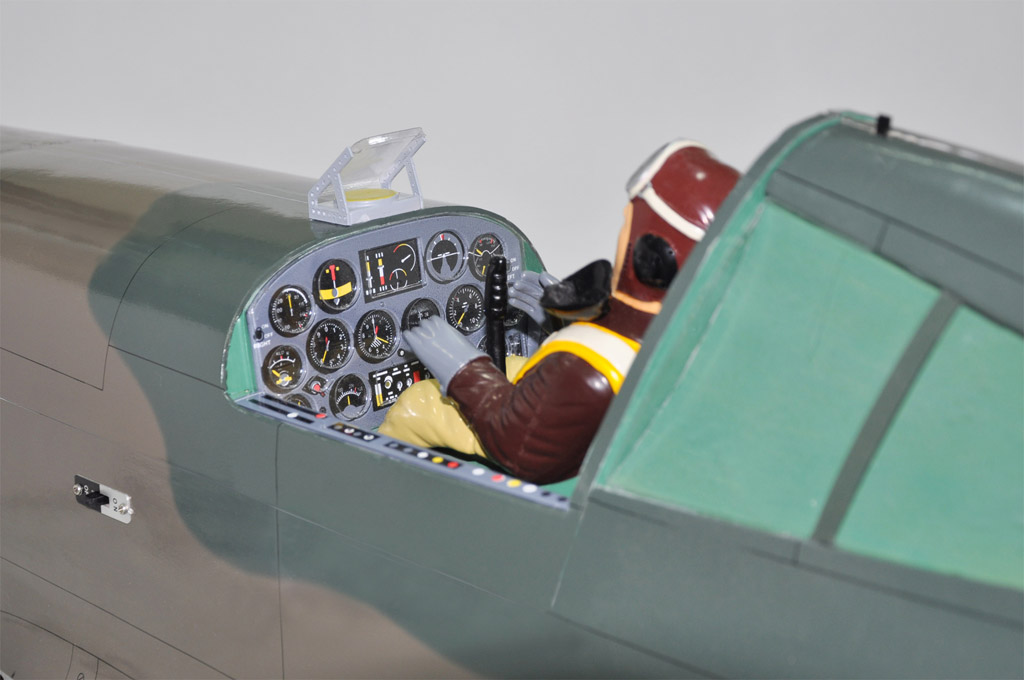

– Full-depth cockpit and instrument panel and pilot included
– Bolt-on two-piece wing for easy transport and setup at the field

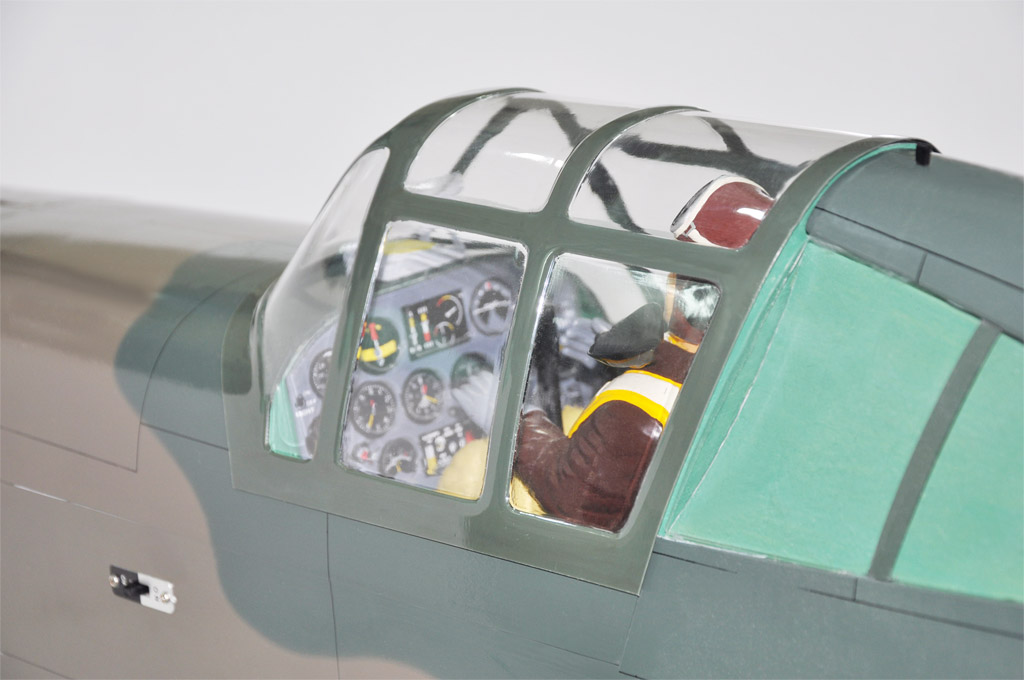

– Removable canopy for easy change lipo battery and set up radio
– Composite material for super strong and light weight
– Superb flying characteristics, plus an accurate scale outline
– High-quality hardware package included
Colour chart
Not update…
Packing
BOX DIMENSION
– 1580mm X 610mm X 470mm (L x W x H)
